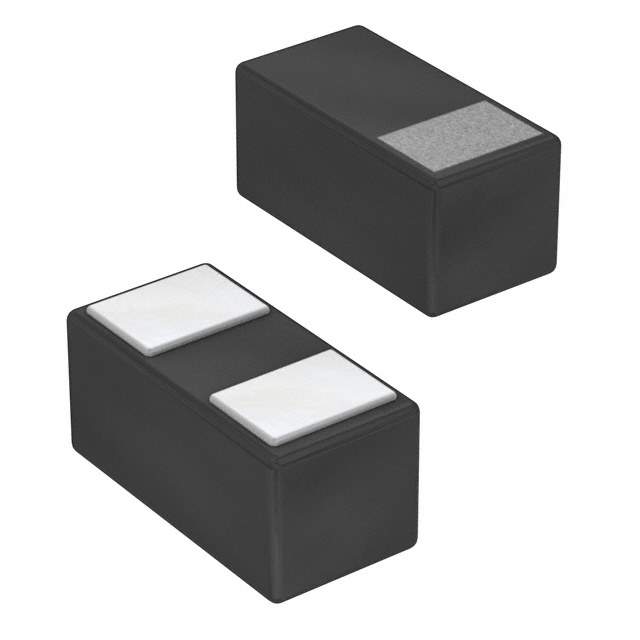

The ESDARF02-1BU2CK is an advanced ESD protection device from STMicroelectronics, designed to safeguard high-speed interfaces against electrostatic discharge (ESD) and other voltage-induced transient events. This component is a testament to STMicroelectronics' commitment to providing state-of-the-art circuit protection solutions for modern electronic applications.
Key Features
- High ESD Protection: The device offers superior ESD protection exceeding IEC 61000-4-2 level 4, withstanding ESD strikes up to 30kV (air discharge) and 30kV (contact discharge).
- Low Capacitance: With an ultra-low capacitance design, it ensures high signal integrity for high-speed data lines without compromising on protection.
- Low Clamping Voltage: It features a low clamping voltage, which is critical for protecting sensitive electronic components from transient over-voltage events.
- Single-Line Protection: The device is designed to protect one data line, making it ideal for applications where board space is at a premium.
- Small Package: Housed in a small and thin package, the ESDARF02-1BU2CK is suitable for space-constrained applications, allowing for flexible PCB design.
Applications
The ESDARF02-1BU2CK is versatile and can be used across various high-speed data interfaces which require robust protection against ESD. These include USB 2.0, HDMI, DisplayPort, and Thunderbolt interfaces, among others. It is also well-suited for protecting antenna lines and general-purpose I/Os in consumer electronics, mobile devices, and portable electronics.
Benefits
Incorporating the ESDARF02-1BU2CK in your design can significantly enhance product reliability and longevity. It minimizes the risk of damage due to ESD events, ensuring that your electronic devices perform consistently over time. By choosing STMicroelectronics' ESD protection solutions, you are selecting quality and performance engineered to meet the highest industry standards.
