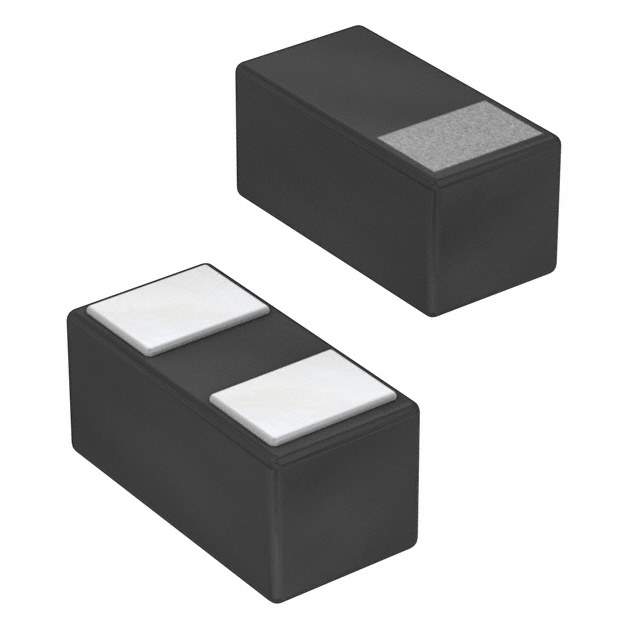

ESDALC8-1BF4 Bidirectional Single Line TVS Diode by STMicroelectronics

The ESDALC8-1BF4 from STMicroelectronics is a state-of-the-art bidirectional single line Transient Voltage Suppression (TVS) diode, designed to protect sensitive electronics from the damaging effects of Electrostatic Discharge (ESD). This compact and efficient component is a perfect solution for safeguarding high-speed data lines and other vulnerable circuits against transient voltage spikes.

Key Features

• Low Clamping Voltage: The device offers a low clamping voltage, which is crucial for protecting modern electronics that operate at low voltage levels.
• High ESD Protection: It can withstand ESD discharges up to 30 kV (air discharge) and 30 kV (contact discharge), as per the IEC 61000-4-2 standard, providing robust protection for sensitive components.
• Large Bandwidth: The ESDALC8-1BF4 is suitable for high-speed applications, thanks to its large bandwidth, ensuring signal integrity is maintained.
• Bidirectional Protection: Designed to protect against both positive and negative transient voltages, making it ideal for AC signal lines or any application where the polarity of the transient could be either direction.
• Low Leakage Current: Minimizes power consumption when the device is in standby mode, contributing to the energy efficiency of the overall system.
• Small Package Size: Available in the SOD-882L package, the ESDALC8-1BF4 is compact and suitable for space-constrained applications.

Applications

The ESDALC8-1BF4 is versatile and can be used in a variety of applications, including:

• USB 2.0 and 3.0 power and data line protection
• HDMI and DisplayPort interfaces
• Smartphone and tablet accessory ports
• Portable electronics
• Serial and parallel interfaces
• Network and telecommunications systems

Reliability and Quality

STMicroelectronics is renowned for its commitment to quality and reliability. The ESDALC8-1BF4 is no exception and has been rigorously tested to meet high industry standards. With its robust design and high protection level, this TVS diode is an excellent choice for safeguarding electronic equipment against the sudden and unexpected effects of ESD.

For designers and engineers looking for a reliable and efficient way to protect their circuits, the ESDALC8-1BF4 by STMicroelectronics offers a perfect blend of performance, size, and protection, making it an essential component in the design of modern electronic devices.
