ESDALC6V1P5 - Transient Voltage Suppressor from STMicroelectronics

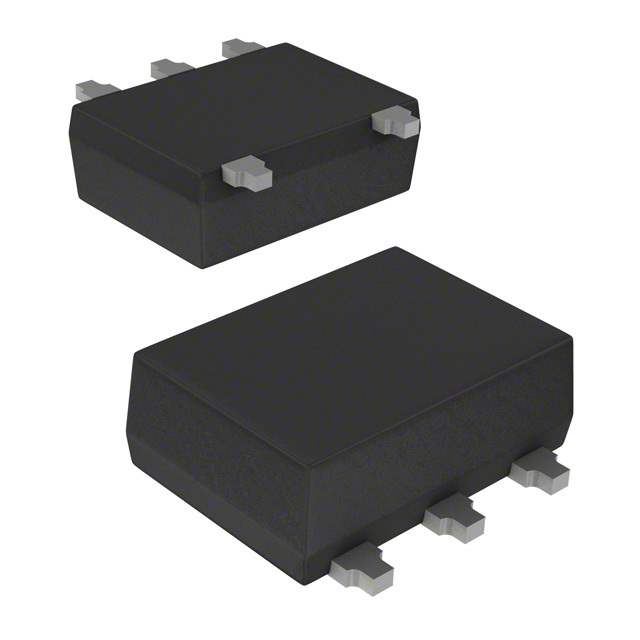

The ESDALC6V1P5 is a cutting-edge transient voltage suppressor (TVS) designed by STMicroelectronics, a global leader in semiconductor solutions. This protective device is specifically engineered to safeguard sensitive electronic circuits against electrostatic discharge (ESD) and other transient voltage events. With its compact SOT-666 package, the ESDALC6V1P5 is an ideal choice for space-constrained applications where efficient ESD protection is critical.

Key Features

• Low Clamping Voltage: The device offers a very low clamping voltage, which ensures that sensitive components are well protected from high-voltage transients.
• High ESD Protection Level: It is capable of withstanding ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard, providing robust protection for your electronic equipment.
• Low Leakage Current: The ESDALC6V1P5 features a very low leakage current, which enhances the overall energy efficiency of the system it is protecting.
• Fast Response Time: It reacts swiftly to transient events, ensuring immediate protection for downstream components.
• Multi-Line Protection: The device can protect up to 5 data or power supply lines, making it highly versatile for a variety of applications.
• Peak Pulse Power: It can handle a peak pulse power of up to 200 W (8/20 μs waveform), which is essential for absorbing high-energy transients.

Applications

The ESDALC6V1P5 is suitable for a wide range of applications, particularly where space is at a premium and high-level ESD protection is required. Some common applications include:

• USB interfaces
• HDMI ports
• Smartphones, tablets, and other portable devices
• Computers and peripherals
• Networking equipment and IoT devices

STMicroelectronics' ESDALC6V1P5 is a testament to the company's commitment to providing advanced protection solutions for the electronics industry. Its combination of low clamping voltage, high ESD protection level, and fast response time makes it an essential component for safeguarding sophisticated electronic systems against the damaging effects of transient voltage events.
