Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 14.2V
Power Dissipation - Pd 50W
Applications General Purpose
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-666
Win Source Part Number 015701-ESDA14V2BP6
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESDA14V2BP6 CAD Model

Description

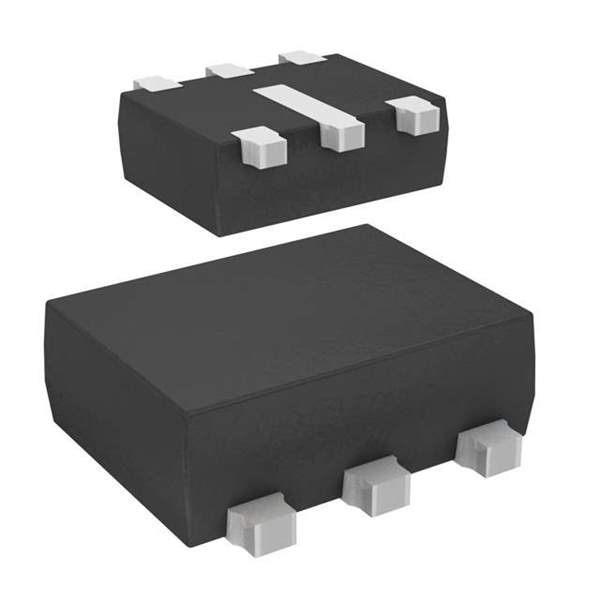

Product Overview: ESDA14V2BP6 by STMicroelectronics

The ESDA14V2BP6 is a state-of-the-art transient voltage suppression (TVS) diode designed and manufactured by STMicroelectronics, a global semiconductor leader renowned for their innovative and reliable products. This robust ESD protection device is engineered to shield sensitive electronic circuits from electrostatic discharge (ESD) threats, ensuring the longevity and stable operation of your electronics.

Key Features

  • Low Clamping Voltage: The ESDA14V2BP6 offers a low clamping voltage, which is crucial for the protection of modern, sensitive electronic components that can be damaged by even small overvoltage events.
  • High ESD Protection: It can withstand ESD discharges up to the maximum level specified in the IEC 61000-4-2 standard, making it an ideal choice for safeguarding high-speed data lines and other vulnerable circuits.
  • Low Leakage Current: The device features a very low leakage current, minimizing power loss and ensuring it does not significantly affect the normal operation of the protected circuit.
  • Multi-Line Protection: This component is capable of protecting two data or power lines, offering a compact and efficient solution for modern electronic designs.
  • Fast Response Time: With its fast response to transient overvoltage events, the ESDA14V2BP6 ensures quick protection to prevent damage to the electronic device.
  • Small Package Size: The device comes in a small SOT-666 package, which is suitable for high-density circuit boards where space is at a premium.

Applications

The ESDA14V2BP6 is versatile and can be used in a wide range of applications, including:

  • Mobile Devices
  • Computers and Peripherals
  • Networking and Telecommunications Equipment
  • Consumer Electronics
  • Portable Medical Devices

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products that meet the stringent requirements of the electronics industry. The ESDA14V2BP6 is no exception and is manufactured to provide reliable ESD protection for critical applications where failure is not an option.

Whether you're designing a new smartphone, setting up a server, or creating a wearable medical device, the ESDA14V2BP6 from STMicroelectronics is an excellent choice for ensuring your product's resilience against the common threat of electrostatic discharge.
