EMIF06-1005MX12Y - EMI Filter and Line Termination for Mobile Applications

The EMIF06-1005MX12Y is a cutting-edge EMI filtering and line termination solution designed specifically for mobile applications, brought to you by STMicroelectronics, a global semiconductor leader. This compact and highly integrated component is engineered to provide superior EMI filtering and ESD protection, ensuring the reliability and performance of mobile communication devices.

Key Features

• High Integration: Integrates six capacitors and five resistors to provide EMI filtering and line termination in a single package, saving valuable board space and reducing component count.
• Enhanced ESD Protection: Incorporates ESD protection circuitry that meets IEC 61000-4-2 level 4 standards, safeguarding sensitive circuits against electrostatic discharges up to 15 kV (air discharge) and 8 kV (contact discharge).
• Low Line Capacitance: Features a low line capacitance of 17 pF (typical), minimizing signal attenuation and ensuring high-speed data integrity.
• Bidirectional Filtering: Provides bidirectional EMI filtering, making it suitable for use on data lines where the signal direction can change.

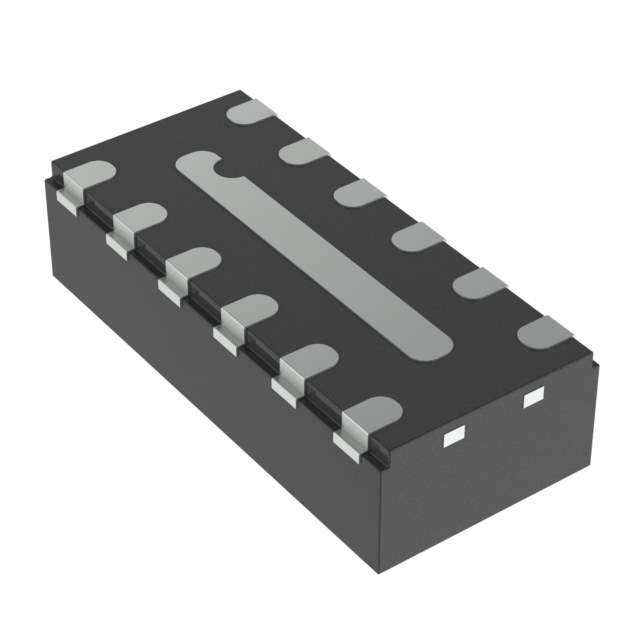

• Compact Footprint: Comes in a compact flip-chip package (2.5mm x 1.2mm x 0.55mm), which is ideal for space-constrained applications such as smartphones, tablets, and other portable electronics.

Applications

The EMIF06-1005MX12Y is designed to meet the stringent requirements of high-speed data lines in a variety of mobile and portable applications, including:

• Smartphones and mobile phones
• Tablets and e-readers
• Portable gaming devices
• GPS units
• Mobile computing devices

Performance and Quality

STMicroelectronics is committed to providing products that deliver exceptional performance and reliability. The EMIF06-1005MX12Y is manufactured using a robust process that ensures consistent quality and performance across the board. Its superior design and manufacturing, combined with the comprehensive technical support from STMicroelectronics, make this EMI filter and line termination component an excellent choice for designers looking to enhance the performance and integrity of their mobile applications.
