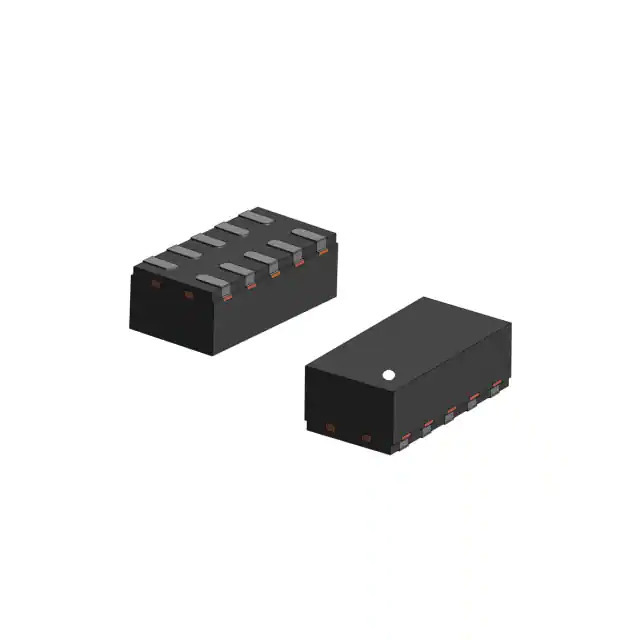

ECMF4-2459A6M10Y - Common Mode Filter with ESD Protection

The ECMF4-2459A6M10Y is an advanced common mode filter designed by STMicroelectronics, incorporating ESD protection to offer a comprehensive solution for signal integrity and safety in electronic applications. This component is particularly well-suited for high-speed differential data lines where both common mode noise suppression and electrostatic discharge protection are required.

Key Features

• Integrated ESD Protection: The ECMF4-2459A6M10Y is equipped with ESD protection that meets IEC61000-4-2 level 4 standards, ensuring robust protection against electrostatic discharges up to 8 kV (contact discharge) and 15 kV (air discharge).
• High Differential Bandwidth: The device supports high-speed data rates with a differential bandwidth that accommodates signals up to 10 GHz, making it ideal for applications such as USB 3.1 Gen 2, HDMI 2.0, and Thunderbolt.
• Common Mode Attenuation: This filter features excellent common mode attenuation, offering noise suppression to maintain signal integrity and reduce electromagnetic interference (EMI) in sensitive circuits.
• Compact Package: Housed in a compact flip-chip package, the ECMF4-2459A6M10Y saves valuable board space and is designed for space-constrained applications.
• Low Insertion Loss: The device exhibits low insertion loss on differential lines, ensuring minimal impact on the signal quality.

Applications

The ECMF4-2459A6M10Y is a versatile component that can be utilized in a variety of applications where high-speed data transmission and protection are critical. It is particularly suitable for:

• USB 3.1 Gen 2 interfaces
• HDMI 2.0 ports
• Thunderbolt interfaces
• DisplayPort connections
• LVDS lines
• Camera Serial Interface (CSI)
• And other high-speed differential data lines in consumer electronics, computing devices, and telecommunications equipment.

Overall, the ECMF4-2459A6M10Y from STMicroelectronics represents a state-of-the-art solution for designers looking to enhance the performance and reliability of their high-speed digital interfaces, while also ensuring compliance with stringent ESD protection requirements.
