STMicroelectronics 74VCX1632245LBR - Low-Voltage Dual Supply Translating Transceiver

The 74VCX1632245LBR is a high-speed, low-voltage dual supply translating transceiver designed by STMicroelectronics to address the needs of modern communication and computing applications that require voltage level translation. This versatile component is part of the VCX family, which is known for its ability to interface between different voltage levels without compromising signal integrity or speed.

With its dual-supply voltage capability, the 74VCX1632245LBR can translate signals between two different voltage domains seamlessly. It accepts an input voltage range from 1.2V to 3.6V on the A side and 1.65V to 5.5V on the B side. This flexibility makes it an ideal choice for applications where devices operating at different voltage levels need to communicate with each other.

The device features 16-bit bidirectional data flow, allowing for efficient data exchange and reducing the need for multiple discrete components. Each data direction is controlled by a separate input (DIR) pin, which simplifies the control logic required for data transmission. The transceiver also includes output enable (OE) inputs, which can be used to place the output in a high-impedance state, thus allowing for the connection of multiple devices on the same bus without conflict.

Designed for low power consumption, the 74VCX1632245LBR operates with a very low static and dynamic power, which is crucial for battery-operated and power-sensitive applications. The device also offers high-speed performance with a maximum data rate that ensures minimal propagation delay, keeping pace with high-speed data transfer requirements.

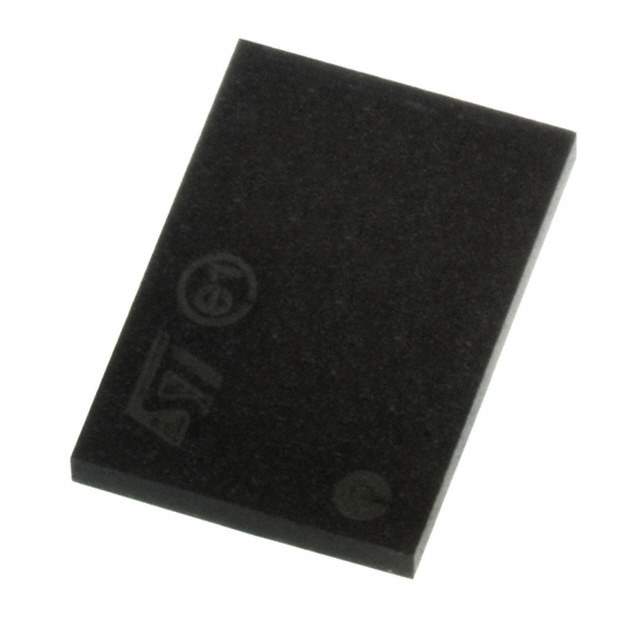

Enclosed in a LFBGA package, the 74VCX1632245LBR is not only compact but also offers improved thermal performance and reduced crosstalk, making it suitable for densely packed PCBs where space and signal integrity are at a premium.

In summary, the STMicroelectronics 74VCX1632245LBR is a robust, high-speed transceiver that delivers reliable voltage level translation with low power dissipation. Its versatile dual-supply voltage capability and high-speed performance make it an excellent choice for a wide range of applications, including mobile devices, computing, networking, and telecommunications.
