The 2N3772 is a high-power NPN bipolar junction transistor (BJT) designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This transistor is well-suited for a wide range of applications that require robust performance, including power switching and amplifier circuits. It is commonly utilized in linear and switching applications, making it a versatile component for designers and engineers.

Key Features

• High Power Dissipation: With the capability to dissipate high levels of power, the 2N3772 is ideal for handling substantial power loads in electronic circuits.
• High Current Handling: This transistor can manage significant current, with a collector current (Ic) rating of up to 20A, allowing it to drive large loads.
• Voltage Ratings: It features a collector-emitter voltage (Vceo) of 60V, ensuring stable operation in various circuit configurations.
• Complementary PNP Type: The 2N3772 has a complementary PNP type available, providing flexibility in designing push-pull amplifier configurations.

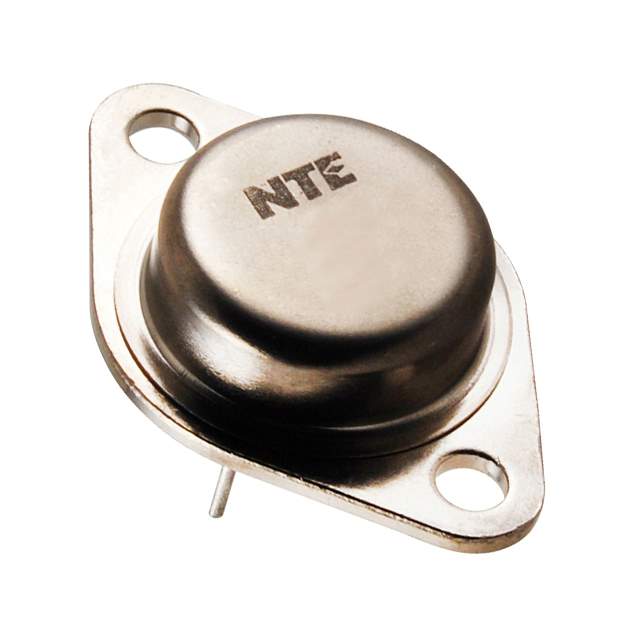

• TO-3 Metal Case: Encased in a TO-3 metal package, the 2N3772 ensures excellent heat dissipation and robustness, which is crucial for high-power applications.

Applications

The 2N3772 transistor finds its use in a broad array of applications due to its high power and current handling capabilities. Some common applications include:

• Linear power amplifiers
• Switching power supplies
• Motor control circuits
• Power inverters
• Regulators

Reliability and Performance

STMicroelectronics is dedicated to providing components that meet the highest standards of reliability and performance. The 2N3772 is built to offer consistent performance even under challenging conditions. Its robust design and construction make it a reliable choice for demanding power applications in industrial, commercial, and consumer electronics.

For detailed specifications, application notes, and additional resources, engineers and designers are encouraged to consult the official STMicroelectronics datasheets and product guides.
