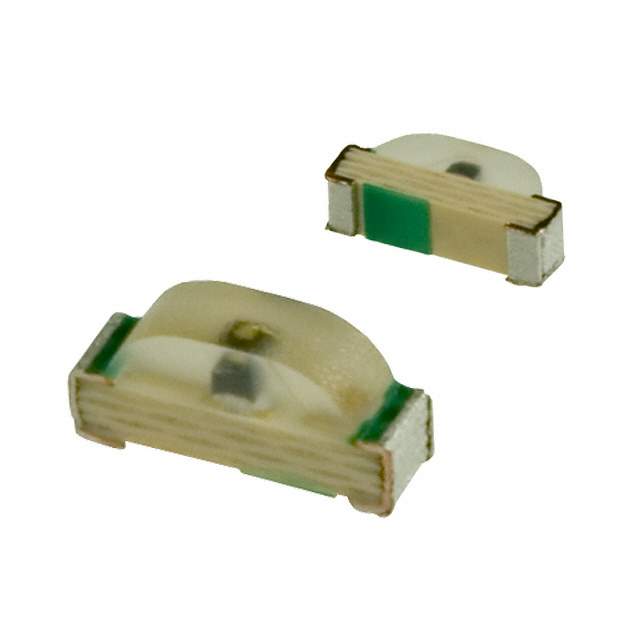

PY1113F-TR Real Image
Same model may have multiple batches, images only for reference.

PY1113F-TR

Part No PY1113F-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED SMD R/A / Green 572nm LED Indication - Discrete 2.1V 2-SMD, No Lead
Datasheet
PY1113F-TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Stanley Electric Co
Series 1113F
Package Tape & Reel
Product Status Obsolete
Color Green
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 11.7mcd
Lens Style Rectangle with Domed Top
Lens Size 1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 150°, 147°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Package / Case 2-SMD, No Lead
Dimension 2.10mm L x 1.00mm W
Height (Max) 0.60mm
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 404-1070-1,404-1070-2,404-1070-6,PY1113FTR
Standard Package 4,000
Win Source Part Number 1137279-PY1113F-TR
Ultra Librarian 3D Model Ultra Librarian PY1113F-TR CAD Model

Description

The Stanley Electric Co's PY1113F-TR LED indication is a green color LED that offers a millicandela rating of 11.7mcd.

  • Color: Green
  • Millicandela Rating: 11.7mcd
  • Viewing Angle: 150° and 147°
  • Package: Tape and Reel
  • Standard Package: 4,000
  • Voltage: 2.1V
  • Current: 20mA
  • Wavelength-Dominant: 572nm
  • Wavelength-Peak: 570nm
  • Lens Style: Rectangle with a domed top
  • Lens Size: 1.70mm x 0.60mm
  • Mounting: Surface-Mount, Right-Angle
