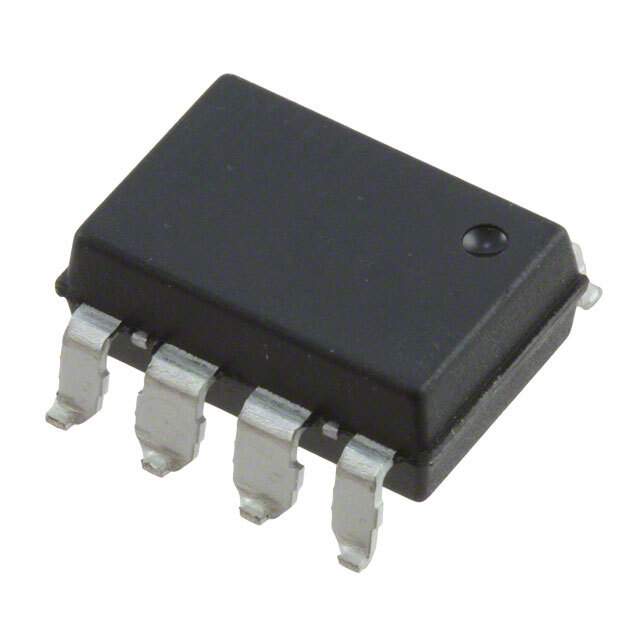

ASSR-4120-302E Real Image
Same model may have multiple batches, images only for reference.

ASSR-4120-302E

Part No ASSR-4120-302E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR DPST .12A 8SMD GW / Solid State Relay 25mA 1.65V DC-IN 0.12A 400V AC/DC-OUT 8-Pin PDIP SMD Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Series ASSR
Packaging Tube
Circuit DPST (2 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 25 Ohm
Load Current 120mA
Voltage - Input 1.3VDC
Voltage - Load 0 ~ 400 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-DIP Gull Wing
Relay Type Relay
Win Source Part Number 768876-ASSR-4120-302E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name ASSR-4120
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ASSR-4120-302E CAD Model

Description

The Broadcom Limited is a high-performance electronic component that is perfect for various applications.

  • Manufacturer Homepage: www.broadcom.com
  • Win Source Part Number: 768876-ASSR-4120-302E
  • Packaging: tube
  • Termination Style: gull wing
  • Relay Type: DPST (2 Form A)
  • Load Current: 120mA
  • Voltage Input: 1.3VDC
  • Voltage Load: 0 ~ 400 V
  • On-State Resistance (Maximum): 25 Ohm
