Same model may have multiple batches, images only for reference.

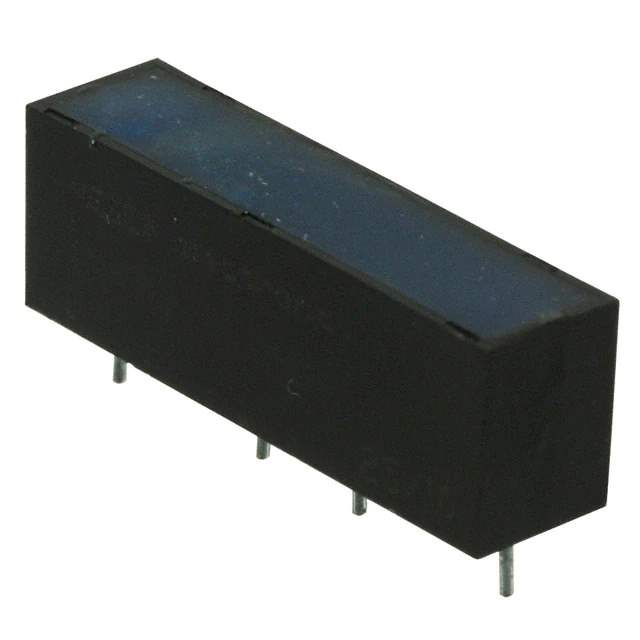

SIL05-1A85-76L4K Real Image
Same model may have multiple batches, images only for reference.

SIL05-1A85-76L4K

Part No SIL05-1A85-76L4K
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 1A 5V
Datasheet
SIL05-1A85-76L4K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Standex-Meder Electronics
Series SIL HV
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1 A
Switching Voltage 1000VAC, 1000VDC - Max
Coil Current 22.8 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3 VDC
Must Release Voltage 0.5 VDC
Operate Time 1.1 ms
Release Time 0.1 ms
Temperature Range - Operating -20°C ~ 70°C
Coil Resistance 220 Ohms
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 933798-SIL05-1A85-76L4K
Ultra Librarian 3D Model Ultra Librarian SIL05-1A85-76L4K CAD Model

Description

The SIL05-1A85-76L4K is a high-voltage reed relay from Standex-Meder Electronics.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 1A
  • Coil Voltage: 5VDC
  • Coil Resistance: 220 ohms
  • Switching Voltage: 1000VAC and 1000VDC (max)
  • Release Time: 0.1ms
  • Package: Tube
  • Package Size: 25 pcs
  • Operating Temperature: -20°C to 70°C
