Same model may have multiple batches, images only for reference.

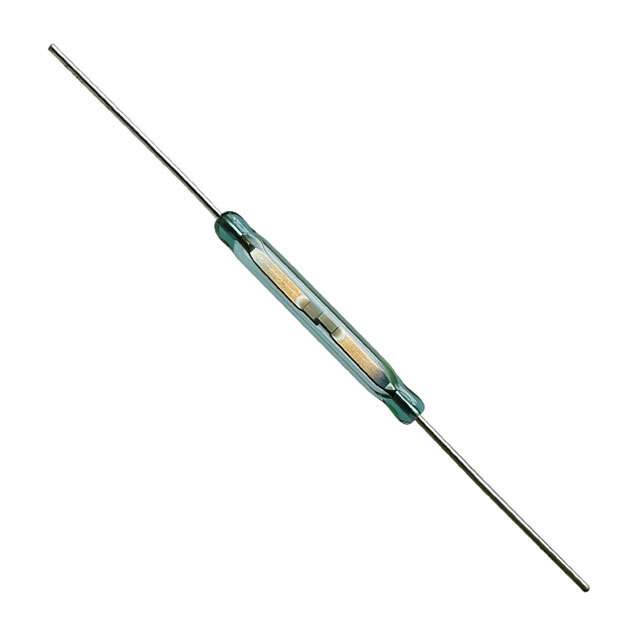

ORD229-2025 Real Image
Same model may have multiple batches, images only for reference.

ORD229-2025

Part No ORD229-2025
Manufacturer Standex-Meder Electronics
Catalog Custom Parts (N - R)
Description Switch Reed N.O. 0.7A 300VAC 350VDC 70VA 0.6ms 100mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Axial
Contact Resistance 100 mΩ
Max Current Rating 700 mA
Max Voltage Rating (AC) 300 V
Max Voltage Rating (DC) 350 V
Mount Axial, Through Hole
Packaging Bulk
RoHS Compliant
Schedule B 8536509020, 8536509020
Termination Axial
Throw Configuration SPST
Turn-On Delay Time 600 µs
Win Source Part Number 1117789-ORD229-2025
Categories Custom Parts
Manufacturer Standex-Meder Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ORD229-2025 CAD Model

Description

The Standex-Meder Electronics 1117789-ORD229-2025 is a custom part axial termination relay with a contact resistance of 100 mΩ.

  • Contact Resistance: 100 mΩ
  • Supply and Demand Status: Limited
  • Maximum Voltage Rating (AC): 300V
  • Maximum Voltage Rating (DC): 350V
  • Maximum Current Rating: 700mA
  • Throw Configuration: Single-pole, single-throw (SPST)
  • Turn-On Delay Time: 600 µs
  • RoHS Compliant: Yes
  • Mounting: Through hole
  • Case/Package: Axial
