Same model may have multiple batches, images only for reference.

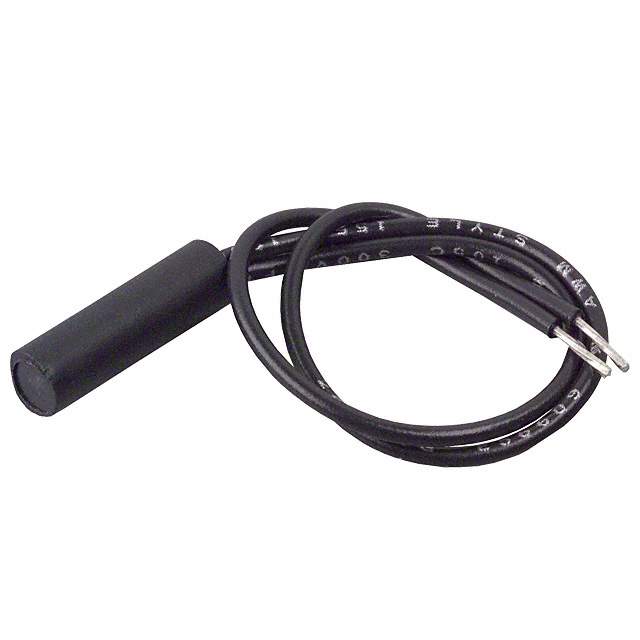

MK18-B-100W Real Image
Same model may have multiple batches, images only for reference.

MK18-B-100W

Part No MK18-B-100W
Manufacturer Standex-Meder Electronics
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR REED SW SPST-NO W LEADS
Datasheet
MK18-B-100W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Standex-Meder Electronics
Status Active
Output Type SPST-NO
Type Reed Switch
Actuator Material Magnet
Termination Style Wire Leads
Must Operate 10 to 25AT
Must Release 4 to 22AT
Temperature Range - Operating -30°C to 70°C (TA)
Dimension Molded Body
Win Source Part Number 208465-MK18-B-100W
Ultra Librarian 3D Model Ultra Librarian MK18-B-100W CAD Model

Description

The Standex-Meder Electronics MK18-B-100W is a reed switch with wire leads termination style.

  • Termination Style: Wire leads
  • Actuator Material: Magnet
  • Output Type: SPST-NO
  • Must Operate Range: 10 to 25AT
  • Must Release Range: 4 to 22AT
  • Category: Sensor and transducer
  • Status: Active
  • Operating Temperature: -30°C to 70°C (TA)
  • Dimension: Molded body
