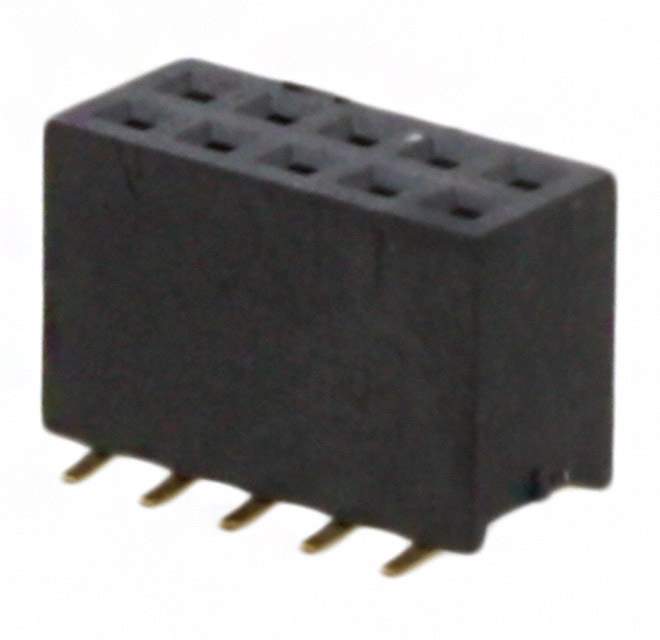

The AMPHENOL Minitek127® 1.27mm is a rectangular connector with female sockets.

• Positions: 10
• Feature: Pick and Place
• Type: Receptacle Connector
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tape and Reel
• Contact Material: Phosphor Bronze
• Voltage Rating: Not specified
• Insulation Material: Plastic
• Material Flammability Rating: UL94 V-0
• Standard Package: 700
• Mounting: Surface Mount Device (SMD)
• Pitch-Mating: 0.050 inches (1.27mm)
• Contact Finish: Gold
• Contact Finish Thickness Mating: 10.0µin (0.25µm)
• Contact Finish Post: Tin
• Contact Finish Thickness Post: 100.0µin (2.54µm)
• Insulation Color: Black
• Contact Shape: Square
• Operating Temperature Range: -40°C to 105°C
• MSL Level: 1 (unlimited)
• Current Rating: Not specified
• REACH: REACH affected
• HTSUS: 8536.69.4040
