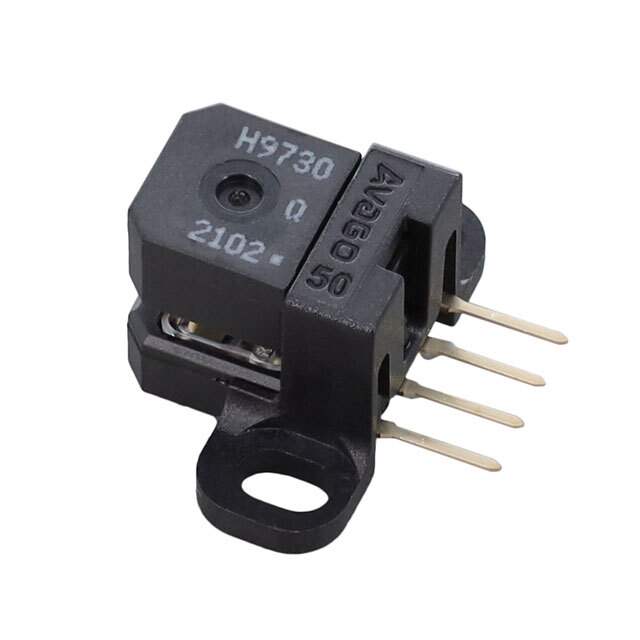

HEDS-9730#Q50 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9730#Q50

Part No HEDS-9730#Q50
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER OPT 180LPI LINEAR 3.3V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 180 LPI
Supply Voltage - Operating 3.3VDC
Actuator Type Codestrip Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 086604-HEDS-9730#Q50
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HEDS-9730#Q50 CAD Model

Description

The Broadcom Limited HEDS-9730#Q50 is a high-popularity optical encoder.

  • Output Type: Quadrature (incremental)
  • Pulses per Revolution: 180 LPI
  • Supply Voltage: 3.3VDC
