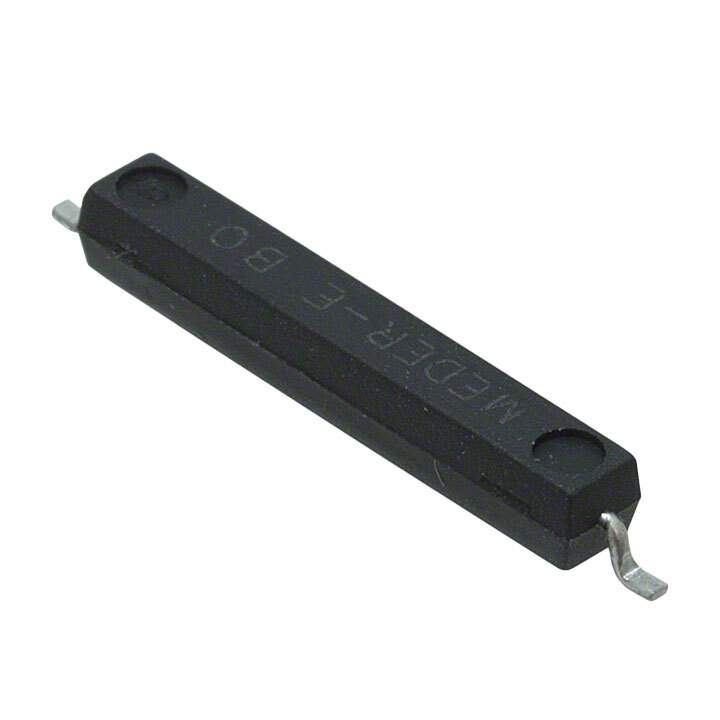

MK15-B-2 Real Image
Same model may have multiple batches, images only for reference.

MK15-B-2

Part No MK15-B-2
Manufacturer Standex-Meder Electronics
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 500MA 180V / Reed Sensors for SMD Mounting
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Standex-Meder Electronics
Packaging Reel
Type Molded Body
Circuit SPST-NO
Operate Range 10 ~ 15AT
Current - Switching 500mA (AC/DC)
Voltage - Switching AC 180V
Voltage - Switching DC 180V
Power - Rated 10W
Operate Time 0.5ms
Release Time 0.05ms
Mounting Style SMD
Termination Style Gull Wing
Length - Overall 0.768" (19.50mm)
Size - Body 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm)
Height Above Board 0.102" (2.60mm)
Temperature Range - Operating -40°C ~ 130°C
Capacitance 0.3pF
Current - Carry 1A (AC/DC)
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801233-MK15-B-2
Ultra Librarian 3D Model Ultra Librarian MK15-B-2 CAD Model

Description

The Standex-Meder Electronics 801233-MK15-B-2 is a molded body gull wing type relay from Standex-Meder Electronics.

  • Mounting Style: SMD
  • Height Above Board: 0.102 inches
  • Overall Length: 0.768 inches
  • Relay Type: SPST-NO
  • Operate Time: 0.5ms
  • Release Time: 0.05ms
  • Capacitance: 0.3pF
  • Power Rating: 10W
  • Operate Range: 10 ~ 15AT
  • Switch Current: 500mA (AC/DC)
  • Switch Voltage: 180V (AC/DC)
  • Body Length: 0.630 inches
  • Body Width: 0.098 inches
  • Body Height: 0.098 inches
  • Carry Current: 1A (AC/DC)
  • Operating Temperature: -40°C to 130°C
  • Manufacturer Pack Quantity: 2,500
  • MSL Level: 1 (Unlimited)
