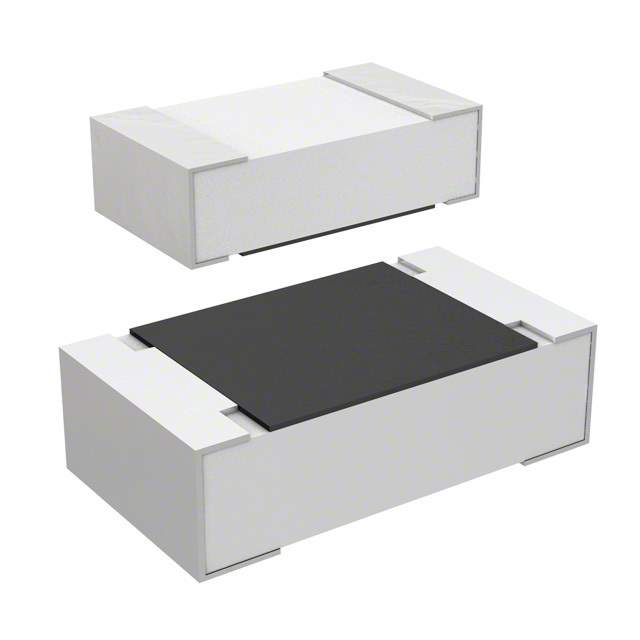

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RMCP
Package Tape & Reel
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.061" L x 0.031" W (1.55mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1352060-RMCP0603JT10R0
Ultra Librarian 3D Model Ultra Librarian RMCP0603JT10R0 CAD Model

Description

The Stackpole Electronics Inc RMCP series chip resistor is a surface-mount resistor designed for use in automotive AEC-Q200 applications by Stackpole Electronics Inc.

  • Resistance: 10 Ohms
  • Power Rating: 0.25W
  • Tolerance: ±5%
  • Composition: Thick Film
  • Size Dimension: 0.061" L x 0.031" W (1.55mm x 0.80mm)
  • Packaging: Tape & Reel
  • Standard Package: 5,000
  • Operating Temperature: -55°C to 155°C
