Same model may have multiple batches, images only for reference.

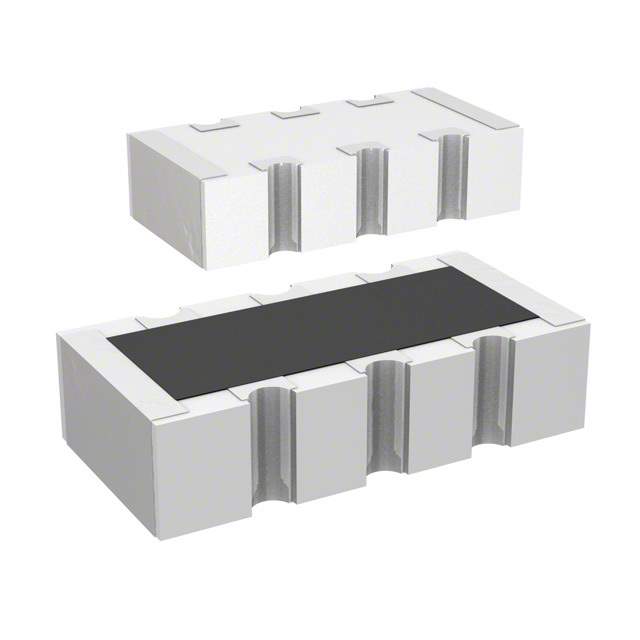

RAVF104DJT51R0 Real Image
Same model may have multiple batches, images only for reference.

RAVF104DJT51R0

Part No RAVF104DJT51R0
Manufacturer Stackpole Electronics Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 51 OHM 0804 / 51 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Convex, Long Side Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer Stackpole Electronics Inc
Packaging Reel - TR
Circuit Type Isolated
Resistance (Ohms) 51
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200
Mounting Surface Mount
Case / Package 0804, Convex, Long Side Terminals
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.020" (0.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Part Number RAVF104DJT51R0-ND,RAV104D515%R,RAV104D515%R-ND,RAV104D51JR,RAV104D51JR-ND,RAVF 104D 51 5% R,RAVF104DJT51R0CT,RAVF104DJT51R0TR,RAVF104DJT51R0DKR,RAV 104D 51 5% R
Standard Package 10,000
Win Source Part Number 1328256-RAVF104DJT51R0
Ultra Librarian 3D Model Ultra Librarian RAVF104DJT51R0 CAD Model

Description

The RAVF104DJT51R0 is a resistor network/array manufactured by Stackpole Electronics Inc.

  • Application: Automotive AEC-Q200
  • Mounting Style: Surface mount
  • Circuit Type: Isolated
  • Number of Resistors: 4
  • Number of Pins: 8
  • Resistance: 51 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power per Element: 62.5mW
  • Temperature Range: -55°C to 155°C
  • Package Type: 0804, convex, long side terminals
  • REACH: Unaffected
  • Compliance: ROHS3
