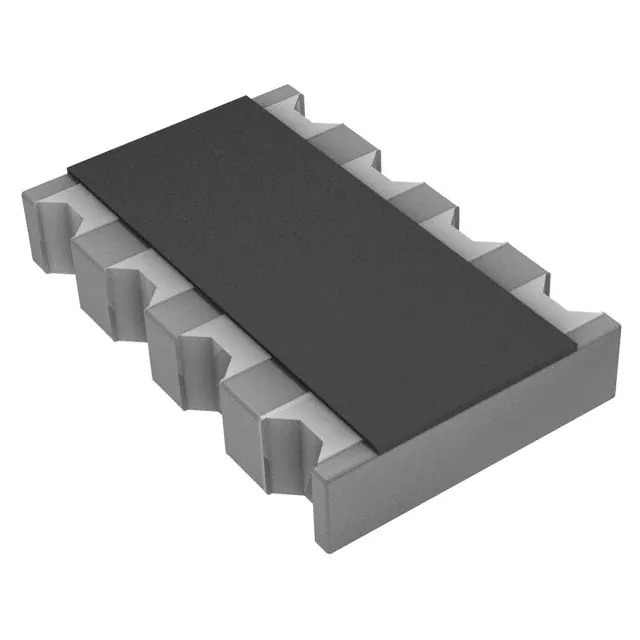

Same model may have multiple batches, images only for reference.
742C083471JP CTS Resistor Products
Same model may have multiple batches, images only for reference.

742C083471JP

Part No 742C083471JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 470 OHM 1206
Datasheet
742C083471JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 742
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 470
Tolerance ±5%
Number of Resistors 4
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 8
Power Per Element 63mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number 742C083
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1374170-742C083471JP
Ultra Librarian 3D Model Ultra Librarian 742C083471JP CAD Model

Description

The 1374170-742C083471JP is a resistor network array manufactured by CTS Resistor Products and belongs to the 742 series.

  • Mounting Type: surface mount
  • Package: tape and reel
  • Package/Case Size: 1206 (3216 Metric)
  • Termination Style: Concave, Long Side
  • Resistance: 470 ohms
  • Tolerance: ±5%
  • Number of Resistors: 4
  • Power per Element: 63mW
  • Circuit Type: isolated
  • Application: automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
  • Temperature Range: -55°C to 125°C
  • Temperature Coefficient: ±200ppm/°C
  • Product Status: active
  • REACH: unaffected
  • ECCN: EAR99
