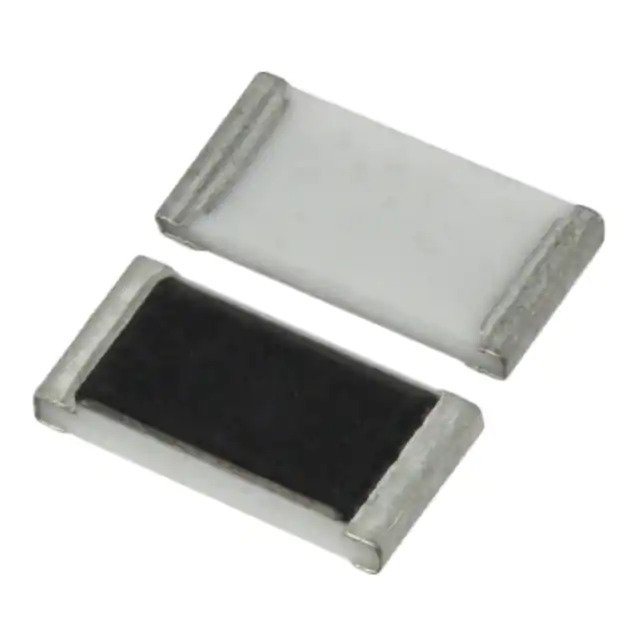

Same model may have multiple batches, images only for reference.
RPC1206JT2R20-UP Stackpole Electronics Inc.
Same model may have multiple batches, images only for reference.

RPC1206JT2R20-UP

Part No RPC1206JT2R20-UP
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES 2.2 OHM 5% 3/4W 1206 / 2.2 Ohms ±5% 0.75W, 3/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RPC
Package Tape & Reel
Product Status Active
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1355565-RPC1206JT2R20-UP
Ultra Librarian 3D Model Ultra Librarian RPC1206JT2R20-UP CAD Model

Description

The 1355565-RPC1206JT2R20-UP is a chip resistor from Stackpole Electronics Inc.

  • Resistance Value: 2.2 ohms
  • Tolerance: ±5%
  • Power Rating: 0.75W (3/4W)
  • Temperature Coefficient: ±200ppm/°C
  • Mounting: Surface Mount
  • Package: 1206 (3216 Metric)
  • Size: 0.122" L x 0.061" W (3.10mm x 1.55mm)
  • Seated Height: 0.026" (0.65mm)
  • AEC-Q200: Rated
  • REACH: Unaffected by REACH regulations
  • ECCN: EAR99
