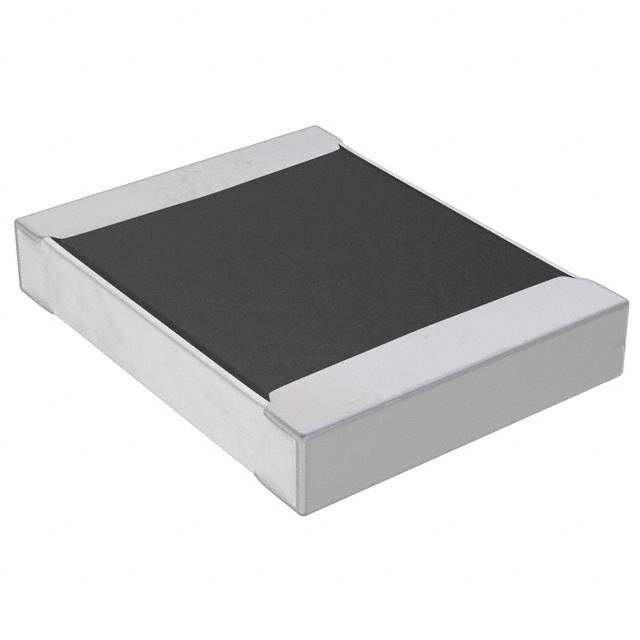

RNCF1210BKE105K Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCF
Package Tape & Reel (TR)
Resistance 105 kOhms
Tolerance ±0.1%
Power (Watts) 0.333W, 1/3W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Dimension 0.122" L x 0.094" W (3.10mm x 2.40mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 1,000
Win Source Part Number 1051828-RNCF1210BKE105K
Ultra Librarian 3D Model Ultra Librarian RNCF1210BKE105K CAD Model

Description

The RNCF series chip resistor is a surface mount resistor that is ideal for automotive applications.

  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Part Number: RNCF1210BKE105K
  • Resistance: 105 kOhms
  • Power Rating: 0.333W
  • Composition: Thin Film
  • Terminations: 2
  • Package/Case: 1210 (3225 Metric)
  • Supplier Device Package: 1210
  • Rating: AEC-Q200
  • Temperature Range: -55°C to 155°C
  • Dimensions: 0.122" L x 0.094" W (3.10mm x 2.40mm)
  • Alternative Parts: ERJ-14YJ104U, ERJ-14NF1003U, CRCW1210100KFKEA, ERJ-P14J104U, CRCW1210100KFKEAHP, and RC1210FR-07100KL
