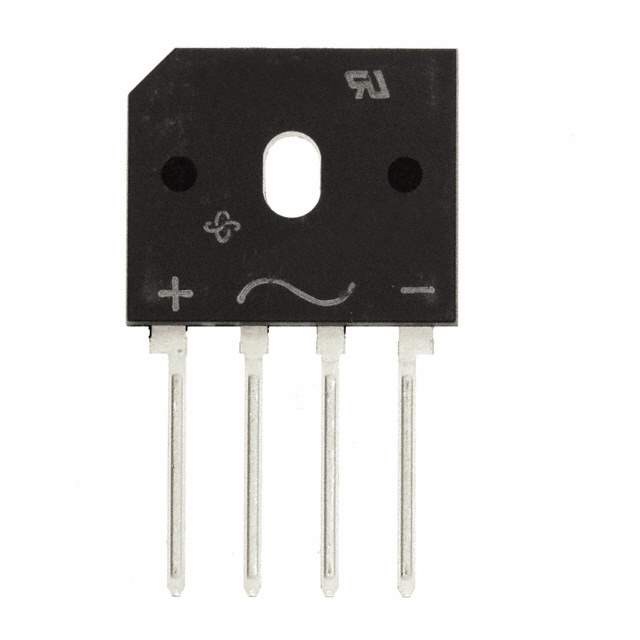

The BU2006-E3/45 is a single-phase bridge rectifier from Vishay. It's designed for converting alternating current (AC) to direct current (DC) in various electronic applications. The rectifier is built with reliable components to provide efficient power conversion and is suitable for use in power supplies, adapters, and other similar circuits.
Applications
- Power supplies
- AC adapters
- Battery chargers
- Lighting systems
- General-purpose rectification
Features
- High surge current capability
- Low forward voltage drop
- High reliability
- Small size
- Simple mounting
- RoHS compliant
Benefits
- Efficient AC to DC conversion
- Protection against voltage surges
- Long operational life
- Compact design for space-saving
- Easy integration into existing circuits
- Environmentally friendly
Additional Details
The BU2006-E3/45 is designed to withstand high surge currents, providing protection to downstream components. Its low forward voltage drop minimizes power losses during rectification, resulting in higher efficiency. The device's small size makes it suitable for applications where space is limited. The rectifier meets RoHS standards, ensuring that it is environmentally friendly and compliant with regulations.
Specifications:
- Repetitive Peak Reverse Voltage: 600V
- Maximum RMS Voltage: 420V
- Maximum DC Blocking Voltage: 600V
- Maximum Average Forward Rectified Current: 2.0A
- Peak Forward Surge Current: 50A
- Forward Voltage Drop: 1.0V (typical)
