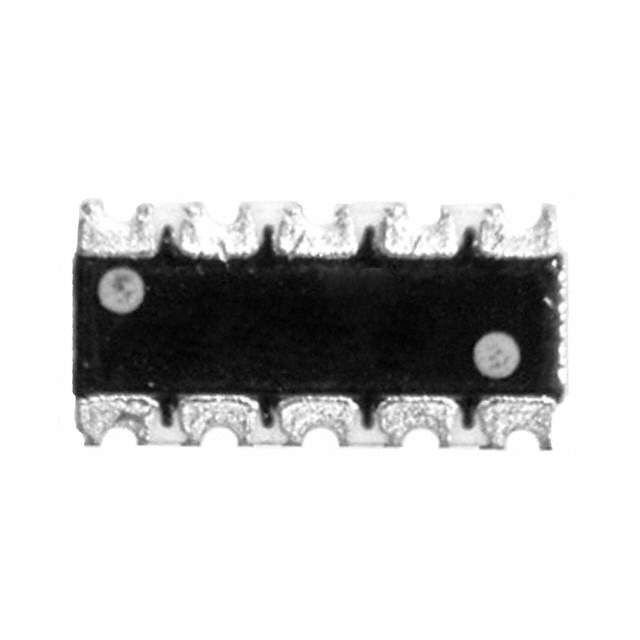

RAC324D680J Real Image
Same model may have multiple batches, images only for reference.

RAC324D680J

Part No RAC324D680J
Manufacturer Stackpole Electronics Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 680 OHM 2010
Datasheet
RAC324D680J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Packaging Reel - TR
Status Active
Circuit Type Isolated
Resistance (Ohms) 680
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 125mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height - Seated (Max) 0.028" (0.70mm)
Win Source Part Number 210534-RAC324D680J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RAC324D680J CAD Model

Description

The RAC324D680J from Stackpole Electronics Inc. is a surface mount resistor with a resistance of 680 ohms and a tolerance of ±5%.

  • Resistance: 680 ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 125mW per element
  • Configuration: Isolated, four resistors with eight pins
  • Operating Temperature: -55°C to 125°C
  • Package: Reel
  • Market Popularity: Medium
  • Supply and Demand: Balanced
