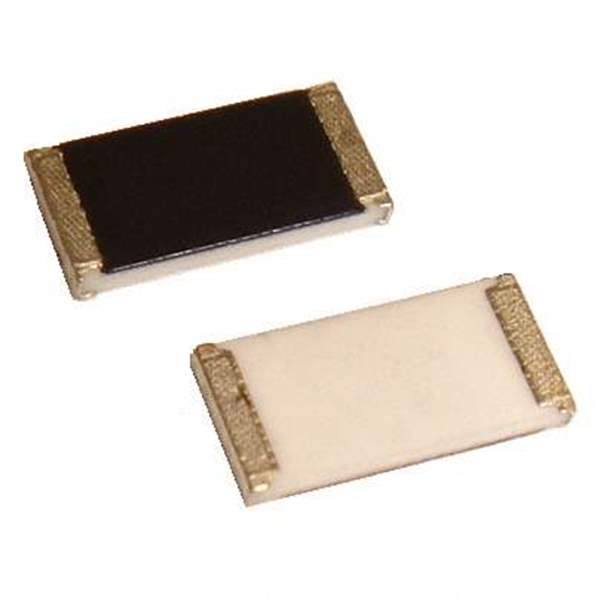

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRN
Package Tape & Reel
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Dimension 0.250" L x 0.124" W (6.35mm x 3.15mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names CSRN20.051%ICT,CSRN20.05FITR,CSRN2-0.05FTR,CSRN2-0.05FDKR,CSRN20.05FIDKR,CSRN2512FK50L0DKR,CSRN20.051%IDKR,CSRN2-0.05FDKR-ND,CSRN 2 0.05 1% I,CSRN2512FK50L0TR,CSRN2-0.05FTR-ND,CSRN20.051%IDKR-ND,CSRN20.05FITR-ND,CSRN2-0.05FCT,CSRN20.05FICT,CSRN20.051%ITR,CSRN20.051%ICT-ND,CSRN20.05FIDKR-ND,CSRN20.051%ITR-ND,CSRN2512FK50L0CT,CSRN20.05FICT-ND,CSRN2-0.05FCT-ND
Standard Package 1,000
Win Source Part Number 962799-CSRN2512FK50L0
Ultra Librarian 3D Model Ultra Librarian CSRN2512FK50L0 CAD Model

Description

This electronic component is a chip resistor - surface mount with the Win Source Part Number 962799-CSRN2512FK50L0.

  • Category: Resistors>Chip Resistor - Surface Mount
  • Series: CSRN
  • Package: Tape & reel
  • Standard Package: 1,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Power: 2W
  • Resistance: 50 mOhms
  • Package / Case: 2512 (6432 Metric)
  • Supplier Device Package: 2512
  • Temperature Range - Operating: -55°C ~ 155°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8533.21.0030
  • Manufacturer: Stackpole Electronics Inc
  • Other Names: CSRN20.051%ICT,CSRN20.05FITR,CSRN2-0.05FTR,CSRN2-0.05FDKR,CSRN20.05FIDKR,CSRN2512FK50L0DKR,CSRN20.051%IDKR,CSRN2-0.05FDKR-ND,CSRN 2 0.05 1% I,CSRN2512FK50L0TR,CSRN2-0.05FTR-ND,CSRN20.051%IDKR-ND,CSRN20.05FITR-ND,CSRN2-0.05FCT,CSRN20.05FICT,CSRN20.051%ITR,CSRN20.051%ICT-ND,CSRN20.05FIDKR-ND,CSRN20.051%ITR-ND,CSRN2512FK50L0CT,CSRN20.05FICT-ND,CSRN2-0.05FCT-ND
