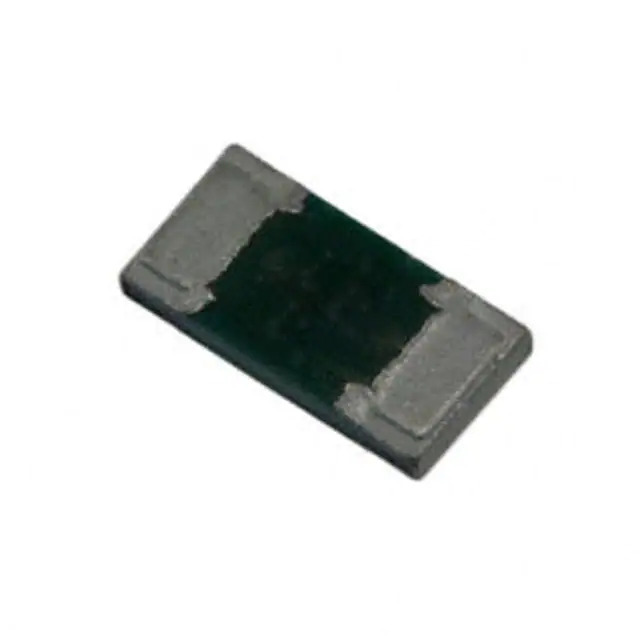

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRF
Package Tape & Reel
Product Status Active
Resistance 3 mOhms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Foil
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.254" L x 0.128" W (6.45mm x 3.25mm)
Height - Seated (Max) 0.037" (0.95mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375378-CSRF2512JT3L00
Ultra Librarian 3D Model Ultra Librarian CSRF2512JT3L00 CAD Model

Description

The CSRF2512JT3L00 is a chip resistor designed for automotive applications from Stackpole Electronics Inc.

  • Application: Automotive
  • AEC-Q200: Rated
  • Resistance: 3 mOhms
  • Power Rating: 2W
  • Series: CSRF
  • Packaging: Tape and Reel
  • Package Size: 2512 (6432 Metric)
  • Feature: Moisture Resistance
  • Temperature Range: -55°C to 170°C
  • Tolerance: ±5%
  • Size: 0.254" L x 0.128" W (6.45mm x 3.25mm)
  • Height: 0.037" (0.95mm)
  • Composition: Metal Foil
  • Terminations: Two
