Same model may have multiple batches, images only for reference.

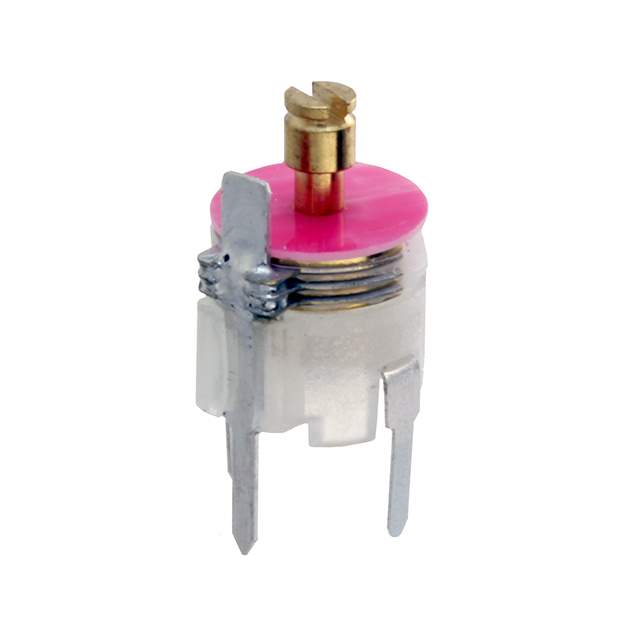

GXE27000NM Real Image
Same model may have multiple batches, images only for reference.

GXE27000NM

Part No GXE27000NM
Manufacturer Sprague-Goodman
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 3.5-27PF 200V TH / 3.5 ~ 27pF Trimmer Capacitor 200 V Top and Bottom Through Hole
Datasheet
GXE27000NM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Trimmers, Variable Capacitors
Mfr Sprague-Goodman
Series GXE
Package Bulk
Product Status Obsolete
Capacitance Range 3.5 ~ 27pF
Adjustment Type Top and Bottom
Voltage - Rated 200 V
Dielectric Material Polytetrafluoroethylene (PTFE)
Q @ Freq 1500 @ 1MHz
Size / Dimension 0.335" L x 0.295" W (8.50mm x 7.50mm)
Height - Seated (Max) 0.402" (10.20mm)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Features Non-Magnetic
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0090
Win Source Part Number 1338557-GXE27000NM
Ultra Librarian 3D Model Ultra Librarian GXE27000NM CAD Model

Description

The Sprague-Goodman GXE27000NM is a variable capacitor that is part of the GXE series.

  • Series: GXE
  • Capacitance Range: 3.5 ~ 27pF
  • Voltage Rating: 200 V
  • Q @ Freq: 1500 @ 1MHz
  • Dielectric Material: PTFE
  • Package: Bulk
  • Standard Package: 100
  • REACH: Unaffected
  • HTSUS: 8532.30.0090
  • Product Status: Obsolete
