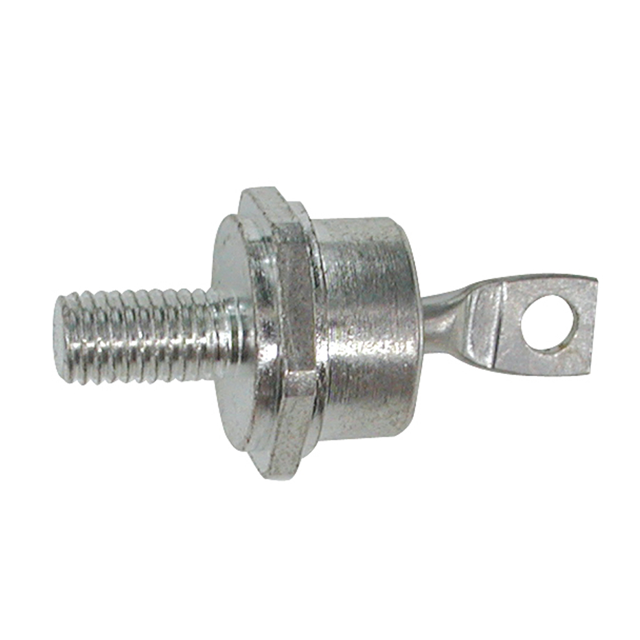

70HF60 Real Image
Same model may have multiple batches, images only for reference.

70HF60

Part No 70HF60
Manufacturer Solid State Inc.
Catalog Diodes, Rectifiers - Single
Description DO5 70 AMP SILICON RECTFIER KK / Diode Standard 600 V 70A Stud Mount DO-5
Datasheet
70HF60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Solid State Inc.
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 70 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 600 V
Mounting Stud Mount
Case / Package DO-203AB, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -65°C ~ 150°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2383-70HF60
Standard Package 10
Win Source Part Number 1325774-70HF60
Ultra Librarian 3D Model Ultra Librarian 70HF60 CAD Model

Description

The Solid State Inc. 1325774-70HF60 is a standard diode with a maximum DC reverse voltage of 600 V and an average rectified current of 70 A.

  • Maximum DC Reverse Voltage: 600 V
  • Average Rectified Current: 70 A
  • Forward Voltage: 1.3 V @ 70 A
  • Reverse Leakage Current: 200 µA @ 600 V
  • Mounting: stud mounting
  • Package: DO-5
  • Operating Temperature Range: -65°C to 150°C
  • ROHS3 Regulations: compliant
