Same model may have multiple batches, images only for reference.

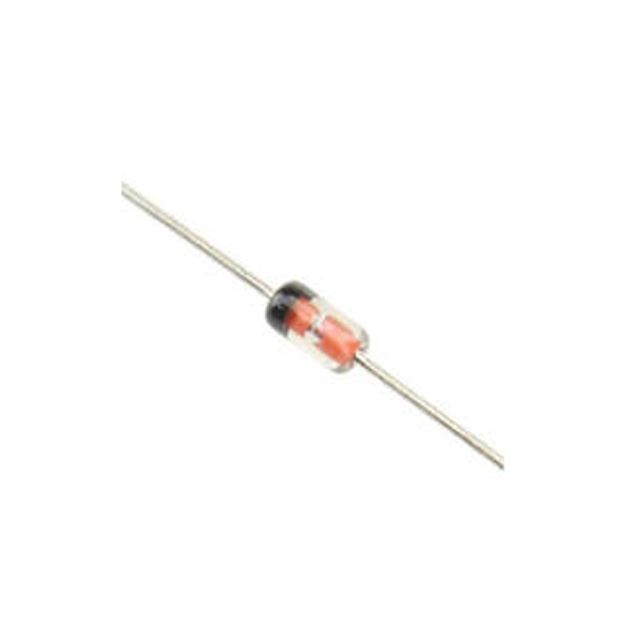

1N277 Real Image
Same model may have multiple batches, images only for reference.

1N277

Part No 1N277
Manufacturer Solid State Inc.
Catalog RF Diodes
Description DO 7 GLASS GERMAINUIM DIODES / RF Diode PIN - Single 110V DO-7
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Solid State Inc.
Package Bulk
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 110V
Capacitance @ Vr, F 0.8pF @ 0V, 1MHz
Temperature Range - Operating -65°C ~ 90°C (TJ)
Package / Case DO-204AA, DO-7, Axial
Supplier Device Package DO-7
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350890-1N277
Ultra Librarian 3D Model Ultra Librarian 1N277 CAD Model

Description

The 1N277 is a PIN-single type RF diode from Solid State Inc.

  • Type: RF Diode
  • Diode Configuration: PIN-Single
  • Package / Case: DO-204AA, DO-7, Axial
  • Capacitance: 0.8pF @ 0V, 1MHz
  • Voltage - Peak Reverse (Max): 110V
  • Resistance @ If, F: Not specified
  • Standard Package: 20
  • Operating Temperature: -65°C to 90°C (TJ)
  • Supplier Device Package: DO-7
