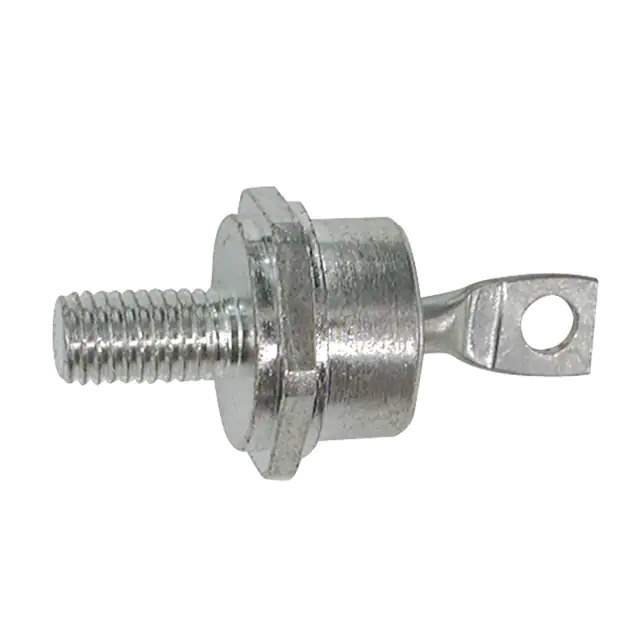

40HFR40 Real Image
Same model may have multiple batches, images only for reference.

40HFR40

Part No 40HFR40
Manufacturer Solid State Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 40A DO5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 40A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 40 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 400 V
Mounting Type Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 545911-40HFR40
Ultra Librarian 3D Model Ultra Librarian 40HFR40 CAD Model

Description

The 545911-40HFR40 is a rectifier diode used in electronic circuits.

  • Category: Discrete Semiconductor Products
  • Type: standard recovery diode
  • Speed: over 500ns
  • Minimum Current: 200mA
  • Packaging: bulk
  • Standard Package: 10 pieces
  • Technology: standard
  • Maximum DC Reverse Voltage: 400V
  • Average Rectified Current: 40A
  • Forward Voltage Drop: 1.3V @ 40A
  • Reverse Leakage Current: 100µA @ maximum reverse voltage
  • Mounting: stud mounting
  • Package/Case: DO-203AB, DO-5
  • Supplier Device Package: DO-5
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8541.10.0080
  • Manufacturer: Solid State Inc.
