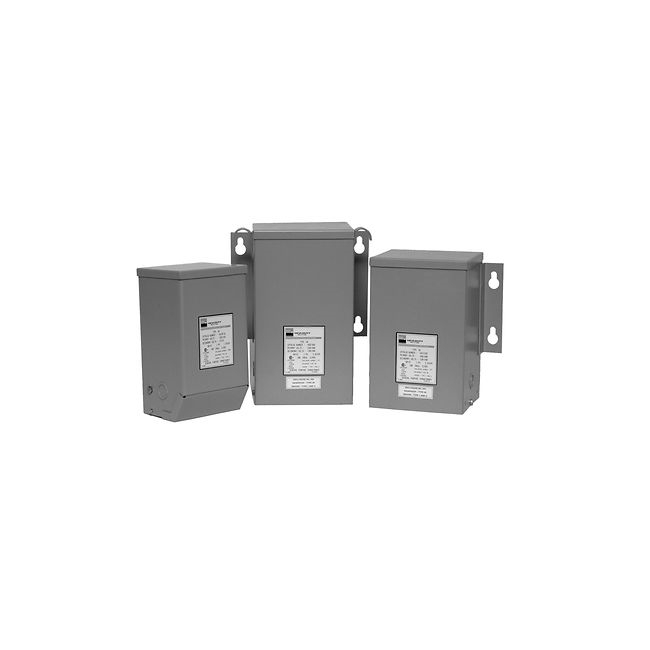

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Primary Winding(s) Dual, Multiple Taps
Secondary Winding(s) Single
Center Tap Yes
Power - Max 50VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545158-E500
Ultra Librarian 3D Model Ultra Librarian E500 CAD Model
