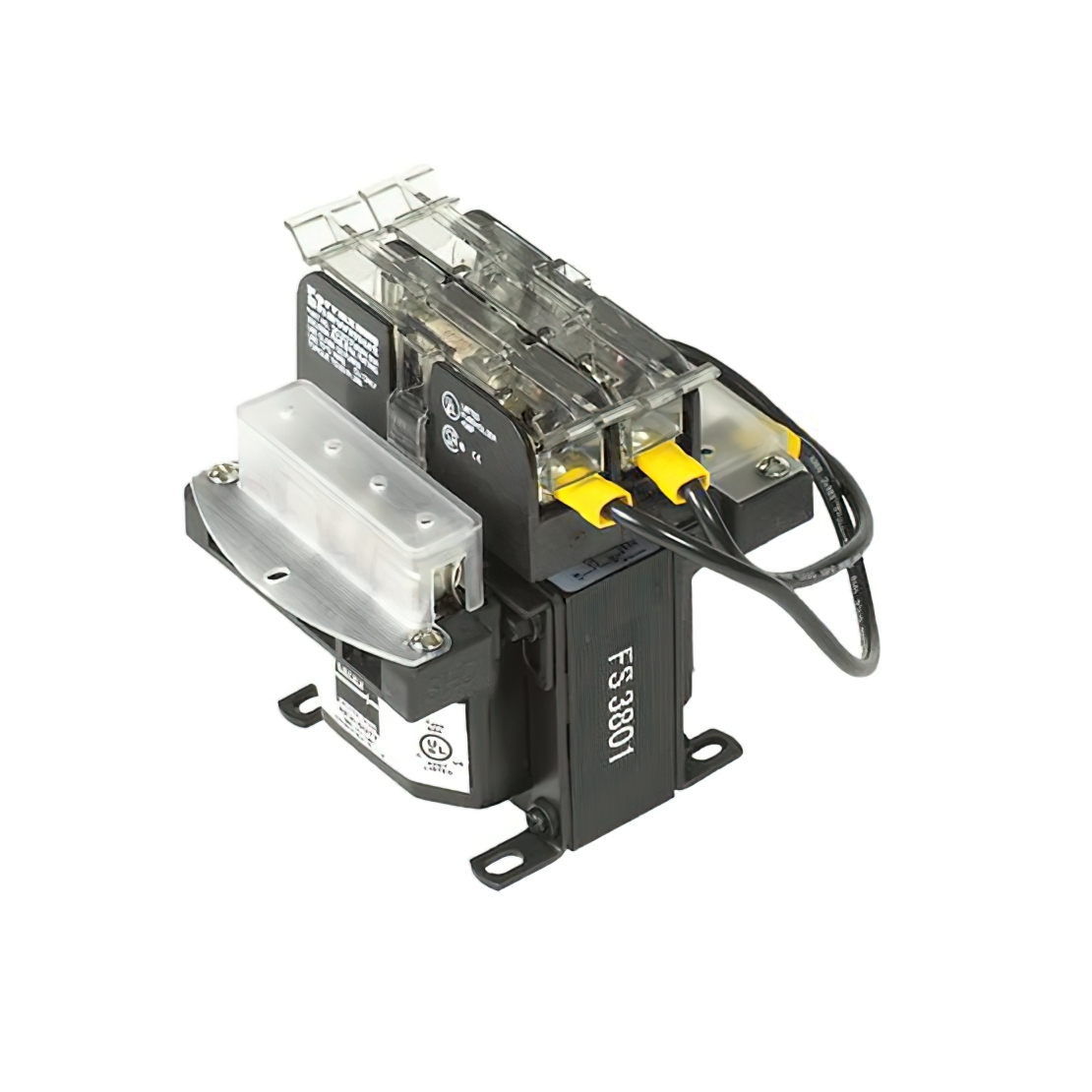

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Center Tap No
Power - Max 100VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 117.10mm L x 86.10mm W
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545129-E100WA
Ultra Librarian 3D Model Ultra Librarian E100WA CAD Model
