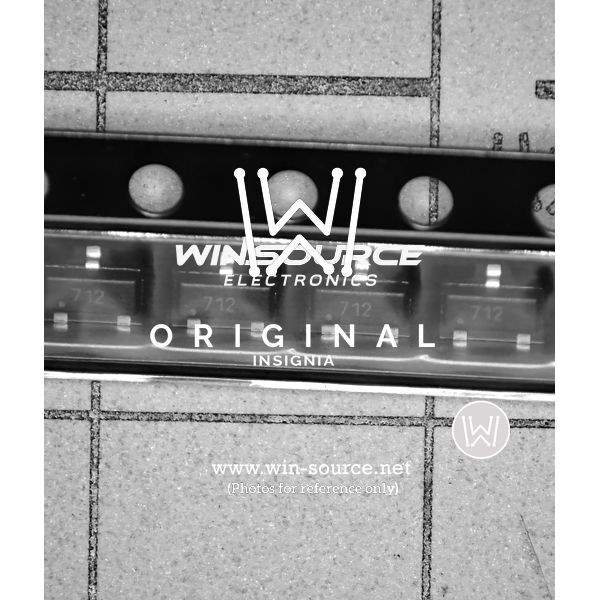

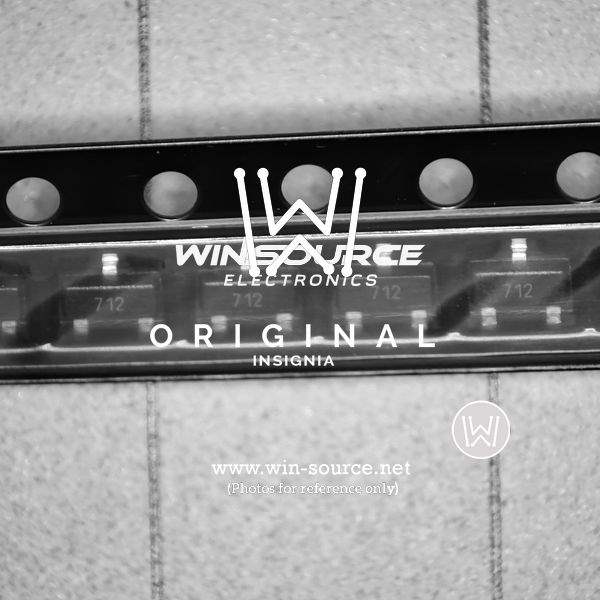

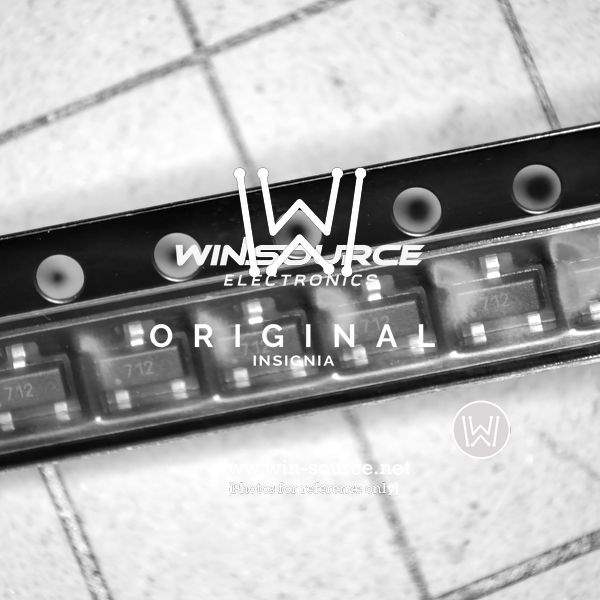

SM712 Real Image SM712 real image5557 SM712 Real Image1 SM712 Real Image2
Same model may have multiple batches, images only for reference.
SM712 Real Image SM712 real image5557 SM712 Real Image1 SM712 Real Image2
SM712 Real Image SM712 real image5557 SM712 Real Image1 SM712 Real Image2
Same model may have multiple batches, images only for reference.

SM712

Part No SM712
Manufacturer SMC Diode Solutions
Catalog TVS - Diodes
Description 7V/12V TVS,PACKAGE SOT-23, TVS A
Datasheet
SM712 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr SMC Diode Solutions
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 12V (Max), 7V (Max)
Voltage - Breakdown (Min) 13.3V, 7.5V
Voltage - Clamping (Max) @ Ipp 26V, 12V
Current - Peak Pulse (10/1000µs) 17A (8/20µs)
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 75pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 327135-SM712
Package Cut Tape (CT)
Voltage - Reverse Standoff (Typ) 7V, 12V
Voltage - Breakdown (Min) 7.5V, 13.3V
Voltage - Clamping (Max) @ Ipp 18V, 26V
Current - Peak Pulse (10/1000µs) 12A
Applications DVI, Ethernet, USB
Operating Temperature -55°C ~ 125°C (TJ)
Grade -
Supplier Device Package SOT-23
Ultra Librarian 3D Model Ultra Librarian SM712 CAD Model

Description

The 327135-SM712 is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose applications.

  • Packaging: tape and reel and cut tape format
  • Standard Package: 3,000 pieces
  • Channels: two bidirectional channels
  • Reverse Standoff Voltages: 12V (max) and 7V (max)
  • Breakdown Voltages: 13.3V (min) and 7.5V (min)
  • Clamping Voltages: 26V and 12V @ peak pulse power of 400W
  • Capacitance: 75pF @ 1MHz
  • Peak Pulse Current: 17A (8/20µs)
  • Operating Temperature Range: -55°C to 125°C (TJ)
  • REACH: REACH affected
  • HTSUS: 8541.10.0080
  • Manufacturer: SMC Diode Solutions
