Same model may have multiple batches, images only for reference.

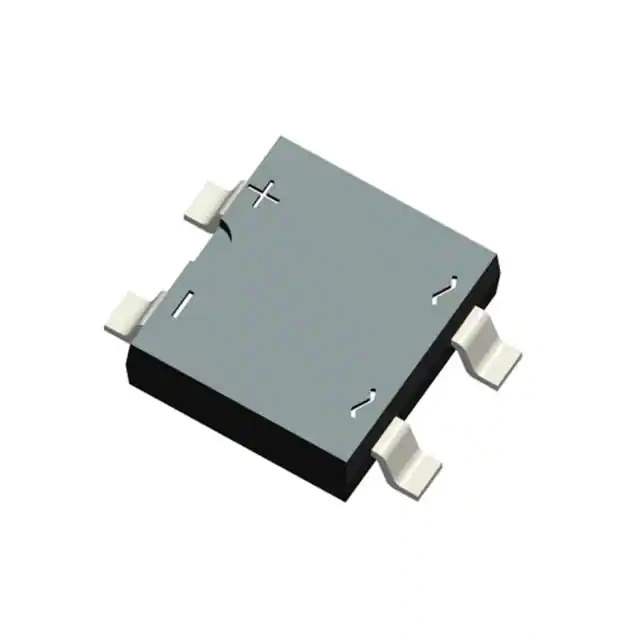

MB10F Real Image
Same model may have multiple batches, images only for reference.

MB10F

Part No MB10F
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 500MA MBF
Datasheet
MB10F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package MBF
Base Product Number MB10
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 216765-MB10F
Ultra Librarian 3D Model Ultra Librarian MB10F CAD Model

Description

The 216765-MB10F is a single-phase bridge rectifier designed for use in rectifier applications.

  • Maximum Forward Voltage: 1.1V @ 800mA
  • Reverse Leakage Current: 5µA @ 1000V
  • Peak Reverse Voltage: 1kV
  • Mounting: Surface Mountable
  • Package: 4-SMD, gull wing
  • Operating Temperature Range: -55°C to 150°C
  • Series: MB10
  • Packaging: Tape and Reel
  • Standard Package: 5,000 pcs
  • Status: Active
