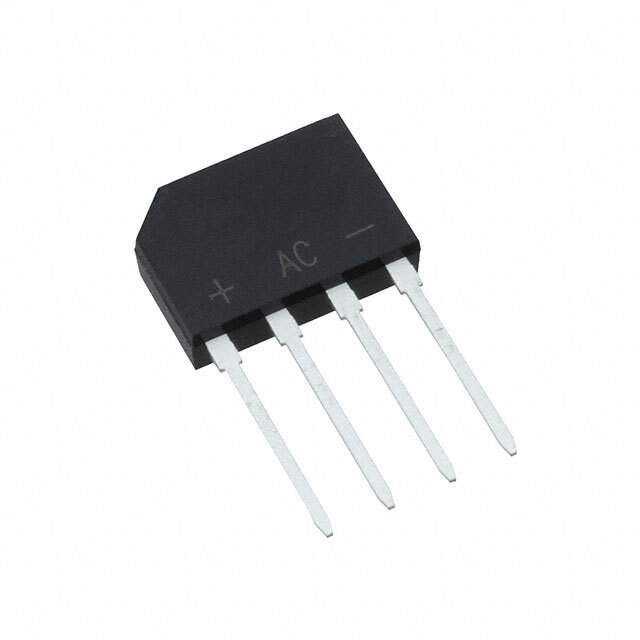

KBP306GTB Real Image
Same model may have multiple batches, images only for reference.

KBP306GTB

Part No KBP306GTB
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 3A KBP
Datasheet
KBP306GTB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Cut Reel
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 3A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBP
Win Source Part Number 1050744-KBP306GTB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KBP306GTB CAD Model

Description

The SMC Diode Solutions KBP306GTB is a through-hole mounted single-phase diode with a current-average rectified (Io) of 3A and a peak reverse voltage (Max) of 600V.

  • Manufacturer: SMC Diode Solutions
  • Product Name: KBP306GTB
  • Mounting Type: through-hole
  • Diode Type: single-phase
  • Current-Average Rectified (Io): 3A
  • Peak Reverse Voltage (Max): 600V
  • Popularity: medium
  • Voltage Forward (Vf): 1.1V @ 3A
  • Current Reverse Leakage @ Vr: 5μA @ 600V
  • Operating Temperature Range: -55°C to 150°C (TJ)
