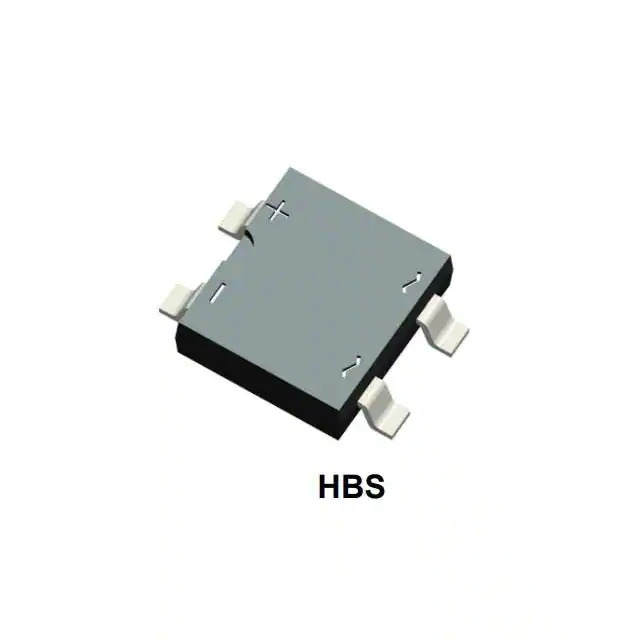

HBS810 SMC Diode Solutions
Same model may have multiple batches, images only for reference.

HBS810

Part No HBS810
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description 1000V,8APACKAGE HBS BRIDGE RECTI
Datasheet
HBS810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 8 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 8 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package HBS
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367773-HBS810
Ultra Librarian 3D Model Ultra Librarian HBS810 CAD Model

Description

The HBS810 is a single-phase bridge rectifier designed for surface mount applications from SMC Diode Solutions.

  • Current Rating: 8A
  • Voltage Rating: 1kV
  • Mounting Type: Surface Mount
  • Package: 4-SMD, Gull Wing
  • Forward Voltage: 1V @ 8A
  • Reverse Leakage Current: 5μA @ 1000V
  • Operating Temperature: -55°C to 150°C
  • REACH: Compliant with REACH regulations
  • ECCN: EAR99
