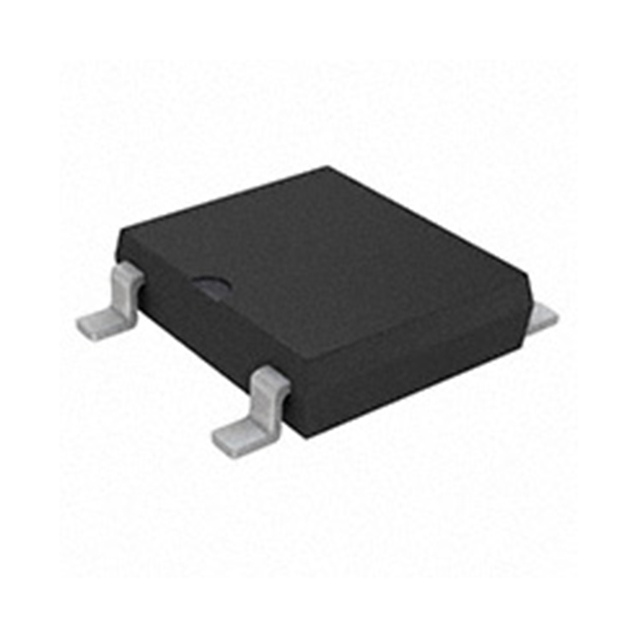

Same model may have multiple batches, images only for reference.
ABS8U SMC Diode Solutions
Same model may have multiple batches, images only for reference.

ABS8U

Part No ABS8U
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 1A ABS
Datasheet
ABS8U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number ABS8
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367758-ABS8U
Ultra Librarian 3D Model Ultra Librarian ABS8U CAD Model

Description

The ABS8U is a bridge rectifier diode from SMC Diode Solutions.

  • Phase: Single-Phase
  • Voltage Rating: 800 V
  • Current Rating: 1 A
  • Forward Voltage Drop: 1.1 V @ 1 A
  • Reverse Leakage Current: 5 µA @ 800 V
  • Mounting Type: Surface Mount
  • Package: 4-SMD, Gull Wing
  • Operating Temperature: -55°C to 150°C
  • Technology: Standard
  • Product Status: Active
  • Packaging: Tape & Reel
