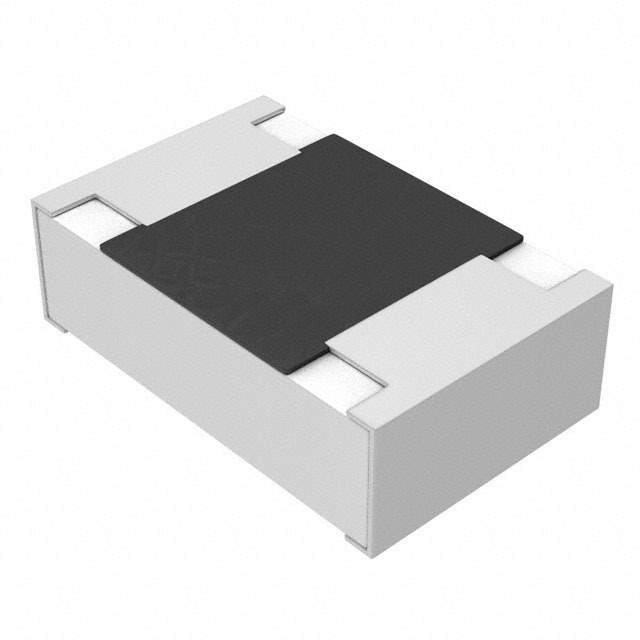

The ERJ6GEYJ223V is a thick film chip resistor manufactured by Panasonic. Part of the ERJ series, this surface mount resistor offers high reliability and stability for a wide range of electronic applications. It is designed for automatic placement and soldering, making it suitable for high-volume manufacturing.

Applications

• Current limiting: Restricting the flow of current in circuits.
• Voltage division: Creating specific voltage levels in electronic circuits.
• Pull-up/Pull-down resistors: Setting the default state of digital inputs.
• Signal termination: Reducing signal reflections in high-speed circuits.
• General-purpose resistance: Providing a specific resistance value in various electronic circuits.

Features

• Surface mount technology (SMT): Enables high-density circuit design.
• Thick film construction: Provides high stability and reliability.
• Automatic placement compatibility: Facilitates high-speed manufacturing.
• High power rating: Offers robust performance under high power conditions.
• RoHS compliant: Meets environmental standards for lead-free electronics.

Benefits

• Improved circuit performance: Stable resistance values ensure consistent circuit operation.
• Reduced component size: SMT design allows for smaller and more compact circuits.
• Cost-effective: High-volume manufacturing compatibility reduces production costs.
• Enhanced reliability: Thick film construction provides long-term stability.
• Versatile use: Suitable for a broad range of electronic applications.

Additional Details

The ERJ6GEYJ223V has a resistance value of 22kΩ. The tolerance code 'J' indicates a tolerance of ±5%. The resistor is typically available in a 0805 package size. It has a power rating of 0.125W (1/8W). The operating temperature range is typically -55°C to +155°C. For detailed specifications, including temperature coefficient of resistance (TCR), voltage rating, and dimensions, refer to the Panasonic datasheet for the ERJ series.
