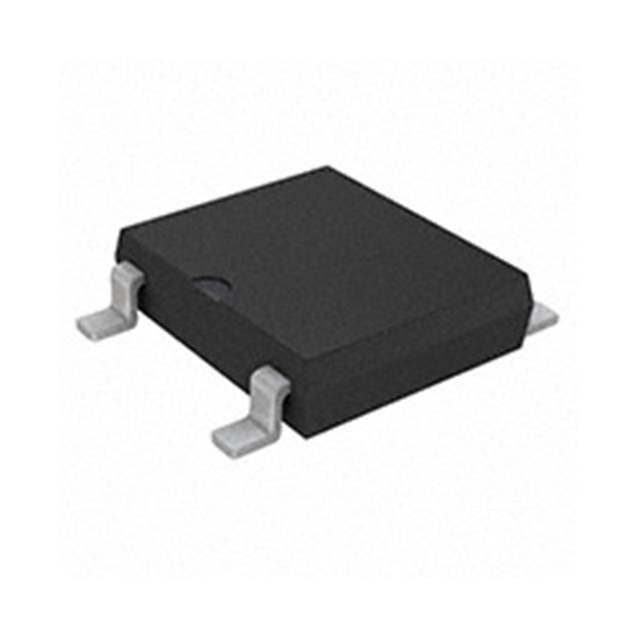

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number ABS4
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 859195-ABS4
Ultra Librarian 3D Model Ultra Librarian ABS4 CAD Model

Description

The ABS4 is a single-phase bridge rectifier designed for standard rectification applications.

  • Peak Reverse Voltage: 400V
  • Average Rectified Current: 500mA
  • Forward Voltage Drop: 1.1V @ 800mA
  • Mounting: Surface mount device
  • Package: 4-SMD, gull wing
  • Operating Temperature Range: -55°C to 150°C
  • Packaging: Tape and reel
