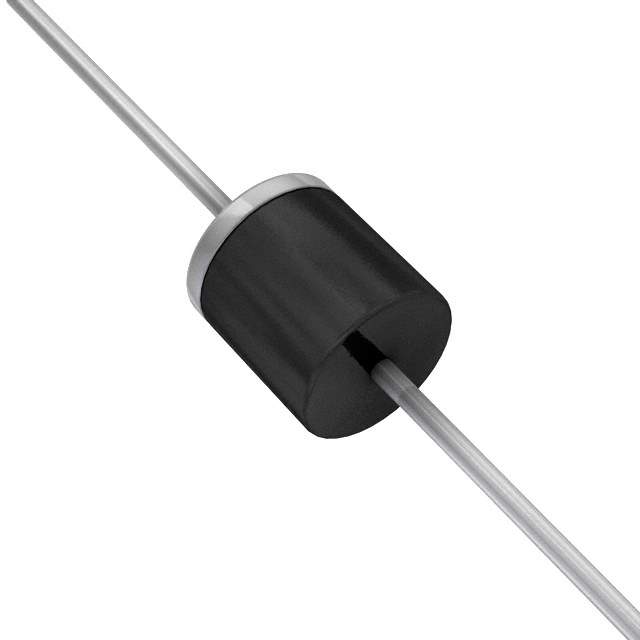

15SQ045TR Real Image
Same model may have multiple batches, images only for reference.

15SQ045TR

Part No 15SQ045TR
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 15A R-6
Datasheet
15SQ045TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 550mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 45V
Mounting Through Hole
Case / Package R-6
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1001593-15SQ045TR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 15SQ045TR CAD Model

Description

The SMC Diode Solutions 15SQ045TR is a Schottky diode with a 45V DC reverse voltage rating and a 15A average rectified current.

  • Reverse Voltage: 45V
  • Average Rectified Current: 15A
  • Forward Voltage: 550mV @ 15A
  • Reverse Leakage: 500μA @ 45V
  • Mounting Type: Through Hole
  • Packaging: Reel
  • Frequency: 200mA (Io)
