Same model may have multiple batches, images only for reference.

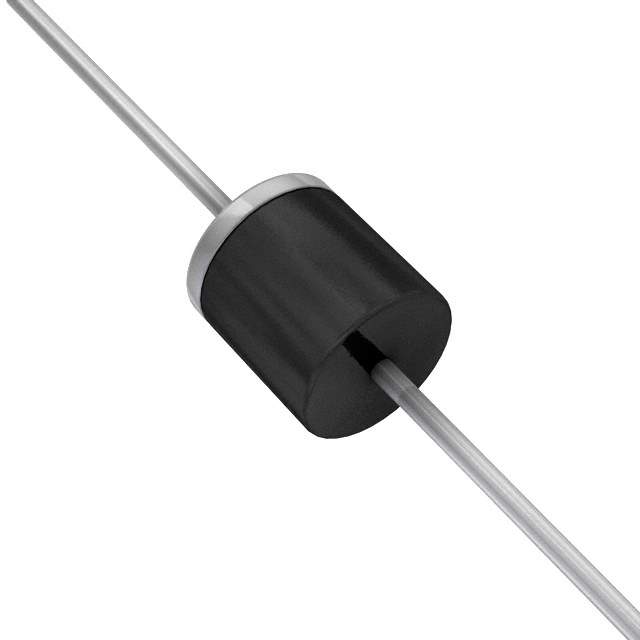

15SQ045 Real Image
Same model may have multiple batches, images only for reference.

15SQ045

Part No 15SQ045
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 15A R-6  /  Diode Schottky 45 V 15A Through Hole R-6
Datasheet
15SQ045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr SMC Diode Solutions
Package Tape & Reel (TR),Cut Tape (CT)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 45 V
Mounting Type Through Hole
Package / Case R-6, Axial
Supplier Device Package R-6
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1655-1354-2,1655-1354-1,1655-15SQ045CT,1655-15SQ045,1655-1354-6INACTIVE,1655-1354-6INACTIVE-ND,15SQ045,1655-15SQ045TR,1655-1354-6,1655-1354-2-ND,1655-1354-1-ND,1655-1354-6-ND,15SQ045TR
Standard Package 500
Win Source Part Number 991813-15SQ045
Ultra Librarian 3D Model Ultra Librarian 15SQ045 CAD Model

Description

The electronic component with Id 886273 is a Schottky diode rectifier manufactured by SMC Diode Solutions.

  • Maximum Reverse Voltage: 45V
  • Average Rectified Current: 15A
  • Forward Voltage: 550mV @ 15A
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Mounting Type: Through Hole
  • Package/Case: R-6, Axial
  • Supplier Device Package: R-6
