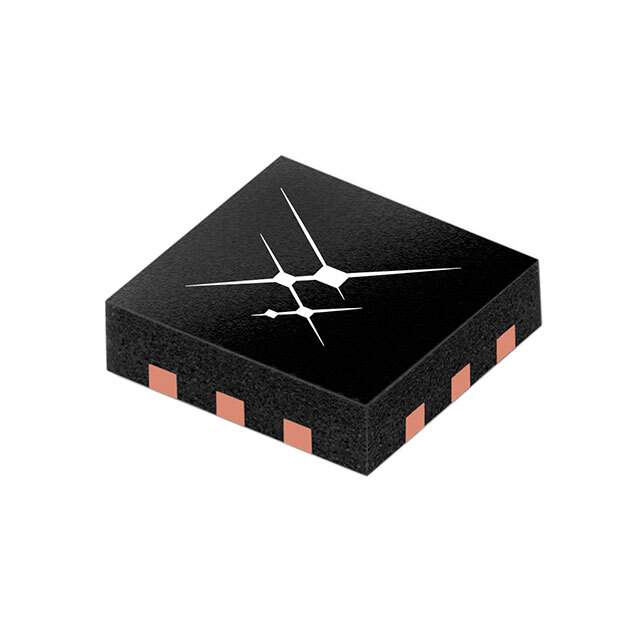

SKY13548-385LF Real Image
Same model may have multiple batches, images only for reference.

SKY13548-385LF

Part No SKY13548-385LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC RF SWITCH SPDT 1.8GHZ 6QFN / RF Switch IC SPDT 1.8 GHz 75Ohm 6-QFN (1x1)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Circuit SPDT
Frequency Range 5MHz ~ 1.8GHz
Isolation 25dB
Insertion Loss 0.4dB
Test Frequency 900MHz
Impedance 75Ohm
Package / Case 6-XFQFN
Supplier Device Package 6-QFN (1x1)
Other Names 863-1824-6,863-1824-2,863-1824-1,863-SKY13548-385LFTR
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235864-SKY13548-385LF
Ultra Librarian 3D Model Ultra Librarian SKY13548-385LF CAD Model

Description

The Skyworks Solutions Inc. SKY13548-385LF is an RF switch designed for use in various electronic applications.

  • Switch Type: Single-pole double-throw (SPDT)
  • Frequency Range: 5MHz to 1.8GHz
  • Impedance: 75Ohm
  • Insertion Loss: 0.4dB
  • Isolation: 25dB
  • Package/Case: 6-XFQFN
  • Package Type: Tape and reel
  • Standard Package: 3,000
  • Temperature Range: -40°C to 85°C
  • RoHS Compliant: Yes
