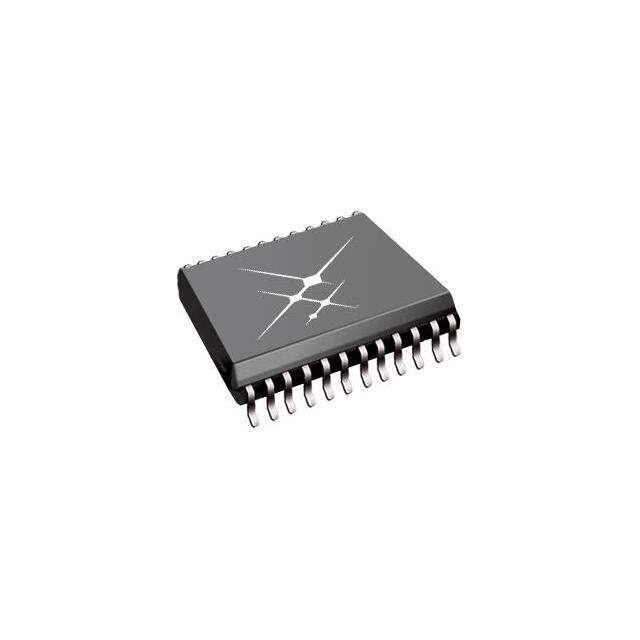

SI8283CD-IS Real Image
Same model may have multiple batches, images only for reference.

SI8283CD-IS

Part No SI8283CD-IS
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV 1CH GATE DVR 24SOIC / 4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 24-SOIC
Datasheet
SI8283CD-IS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tube
Product Status Not For New Designs
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 50ns, 50ns
Pulse Width Distortion (Max) 5ns
Rise / Fall Time (Typ) 5.5ns, 8.5ns
Current - Output High, Low 2.5A, 3A
Current - Peak Output 4A
Voltage - Output Supply 12V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package 24-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8283
Other Names 336-3521
Standard Package 46
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243722-SI8283CD-IS
Ultra Librarian 3D Model Ultra Librarian SI8283CD-IS CAD Model

Description

The SI8283CD-IS is a high-speed capacitive coupling isolator with 5000Vrms isolation voltage.

  • Rise Time: 5.5ns
  • Fall Time: 8.5ns
  • Current Output: 2.5A and 3A
  • Package: 24-SOIC
  • Peak Output Current: 4A
  • Common Mode Transient Immunity: 35kV/μs
  • Propagation Delay tpLH / tpHL (Max): 50ns
  • Pulse Width Distortion: 5ns
  • Application: Isolators - Gate Drivers applications
  • Operating Temperature: -40°C to 125°C
