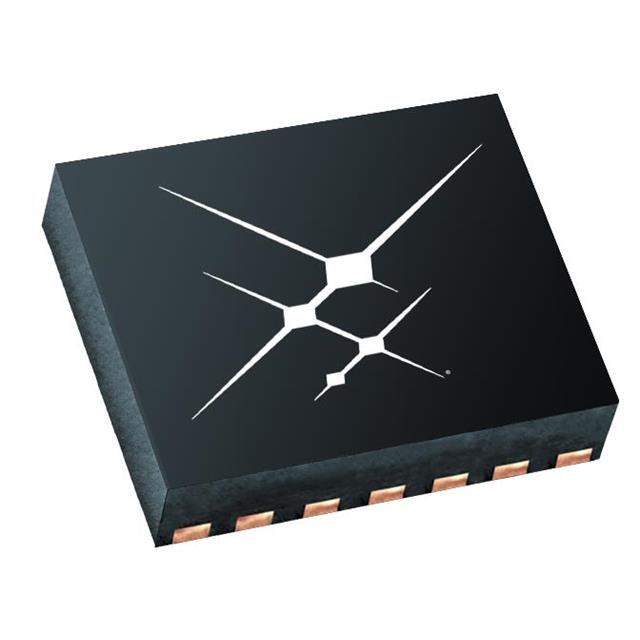

SI8275GBD-IM1 Real Image
Same model may have multiple batches, images only for reference.

SI8275GBD-IM1

Part No SI8275GBD-IM1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 4A 2.5 KV HIGH CMTI DUAL GATE DR / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8275GBD-IM1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Pulse Width Distortion (Max) 8ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.2V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UL, VDE
Base Product Number SI8275
Other Names 336-5949
Standard Package 490
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243741-SI8275GBD-IM1
Ultra Librarian 3D Model Ultra Librarian SI8275GBD-IM1 CAD Model

Description

The SI8275GBD-IM1 from Skyworks Solutions Inc. is a capacitive coupling technology isolator designed for isolators - gate drivers.

  • Channels: Two
  • Output High: 1.8A
  • Output Low: 4A
  • Package: 14-VDFN
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity (Min): 200kV/μs
  • Propagation Delay tpLH / tpHL (Max): 75ns
  • Pulse Width Distortion (Max): 8ns
  • Operating Temperature: -40°C to 125°C
  • Voltage Output Supply: 4.2V to 30V
