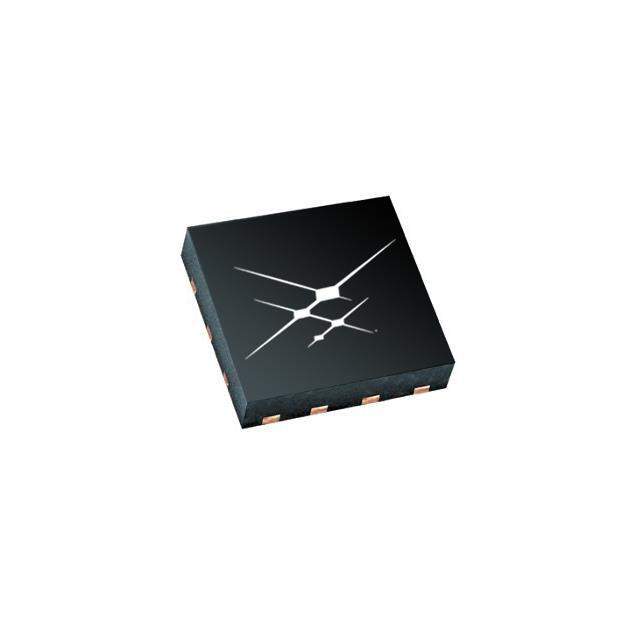

SI8234AB-D-IM1 Real Image
Same model may have multiple batches, images only for reference.

SI8234AB-D-IM1

Part No SI8234AB-D-IM1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description ISOLATED GATE DRIVER / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8234AB-D-IM1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8234
Other Names 336-4266
Standard Package 60
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243566-SI8234AB-D-IM1
Ultra Librarian 3D Model Ultra Librarian SI8234AB-D-IM1 CAD Model

Description

The Skyworks Solutions Inc. SI8234AB-D-IM1 is an isolator that belongs to the automotive, AEC-Q100 series.

  • Mounting Type: SMD (SMT)
  • Technology: capacitive coupling
  • Current Output High: 2A
  • Current Output Low: 4A
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 45kV/μs
  • Propagation Delay: 60ns
  • Pulse Width Distortion: 5.6ns
  • Voltage Output Supply: 6.5V to 24V
  • Operating Temperature: -40°C to 125°C
  • Package/Case: 14-VDFN
  • Supplier Device Package: 14-QFN (5x5)
  • MSL Level: 2 (1 Year)
  • HTSUS: 8542.39.0001
  • Other Names: 336-4266
