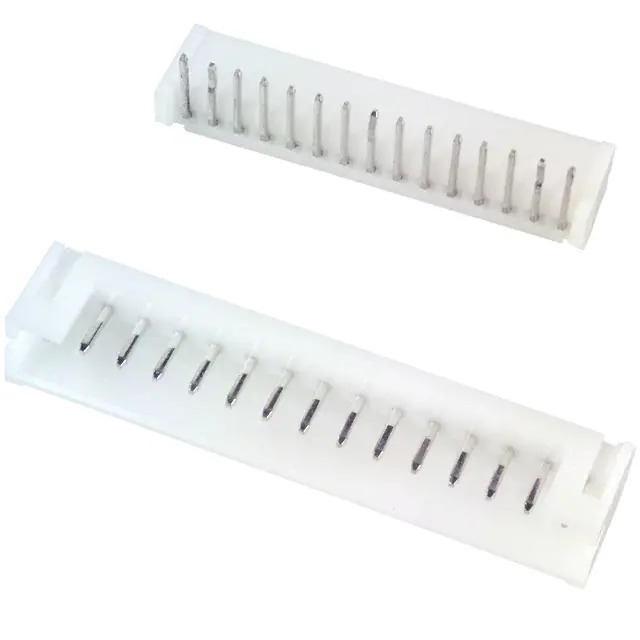

S15B-PH-K-S JST Sales America Inc.
Same model may have multiple batches, images only for reference.

S15B-PH-K-S

Part No S15B-PH-K-S
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 15POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 15
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length -
Insulation Height 0.189" (4.80mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating -
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1379706-S15B-PH-K-S
Ultra Librarian 3D Model Ultra Librarian S15B-PH-K-S CAD Model

Description

The 1379706-S15B-PH-K-S is a header connector from JST Sales America Inc.

  • Series: PH
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.079" (2.00mm)
  • Number of Positions: 15
  • Number of Rows: 1
  • Current Rating: 2A
  • Voltage Rating: 100V
  • Mounting Type: Through Hole, Right Angle
  • Termination: Press-Fit, Solder
  • Fastening Type: Detent Lock
  • Contact Finish: Tin-Lead
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Features: Shrouded - 4 Wall
  • Operating Temperature: -25°C ~ 85°C
  • Insulation Height: 0.189" (4.80mm)
  • Flammability Rating: UL94 V-0
  • Product Status: Obsolete
