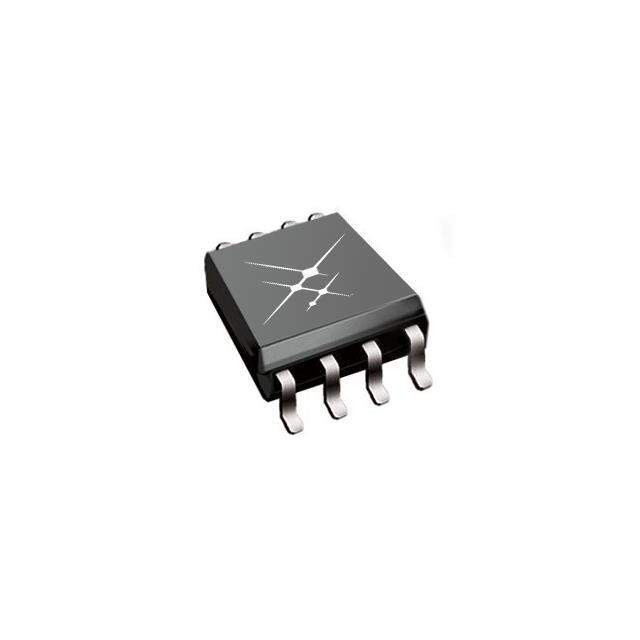

The Skyworks Solutions Inc. SI8220CB-A-IS is an isolator gate driver that belongs to the category of isolators>isolators - gate drivers.

• Series: Automotive, AEC-Q100 series
• Package: Tube
• Standard Package: 96
• Mounting: SMD (SMT) technology
• Technology: Capacitive coupling
• Current - Output High, Low: 1.5A, 2.5A
• Current - DC Forward (If) (Max): 30 mA
• Voltage - Forward (Vf) (Typ): 2.5V (Max)
• Rise/Fall Time (Typ): 20ns, 20ns (Max)
• Number of Channels: 1
• Voltage - Isolation: 2500Vrms
• Common Mode Transient Immunity (Min): 30kV/µs (Typ)
• Propagation Delay tpLH / tpHL (Max): 60ns, 40ns
• Current - Peak Output: 2.5A
• Case/Package: 8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package: 8-SOIC
• Temperature Range: -40°C ~ 125°C
• ECCN: EAR99
• Approvals: CSA, UR, VDE
