Same model may have multiple batches, images only for reference.

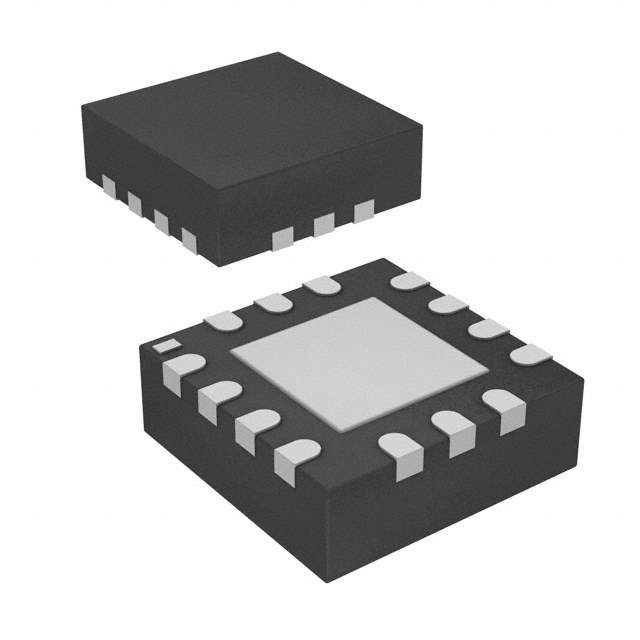

SKY13415-485LF Real Image
Same model may have multiple batches, images only for reference.

SKY13415-485LF

Part No SKY13415-485LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC ANT SW SP5T 0.1-3.0GHZ 14QFN
Datasheet
SKY13415-485LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency - Lower 100MHz
Frequency - Upper 3GHz
Isolation @ Frequency 34dB @ 2GHz (typ)
Insertion Loss @ Frequency 0.4dB @ 2GHz
IIP3 70dBm (typ)
Circuit SP5T
P1dB 37dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 2.5 V to 4.8 V
Case / Package 14-QFN (2x2)
Win Source Part Number 142820-SKY13415-485LF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SKY13415-485LF CAD Model

Description

This electronic component is a product manufactured by Skyworks Solutions Inc. and has a Win Source Part Number of 142820-SKY13415-485LF.

  • Win Source Part Number: 142820-SKY13415-485LF
  • Packaging: reel - TR
  • Impedance: 50 Ohm
  • Circuit: SP5T
  • Frequency Range: 100MHz to 3GHz
  • Isolation: 34dB @ 2GHz (typ)
  • Insertion Loss: 0.4dB @ 2GHz
  • IIP3: 70dBm (typ)
  • P1dB: 37dBm
  • Category: RF/IF and RFID
  • Status: active
  • Temperature Range: -40°C to 85°C
  • Case/Package: 14-QFN (2x2)
  • Supply Voltage Range: 2.5 V to 4.8 V
  • Supply and Demand Status: limited
