SKY13348-374LF

Part No SKY13348-374LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description RF Switch SPDT 500MHz to 6GHz 18dB 6-Pin MLPD EP T/R / IC SW 500MHZ-6GHZ SPDT 6-MLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Active
Frequency - Lower 500MHz
Frequency - Upper 6GHz
Isolation @ Frequency 24dB @ 5.85GHz (typ)
Insertion Loss @ Frequency 1dB @ 5.85GHz
IIP3 57dBm (typ)
Topology Absorptive
Circuit SPDT
P1dB 37dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type 802.16 WiMAX

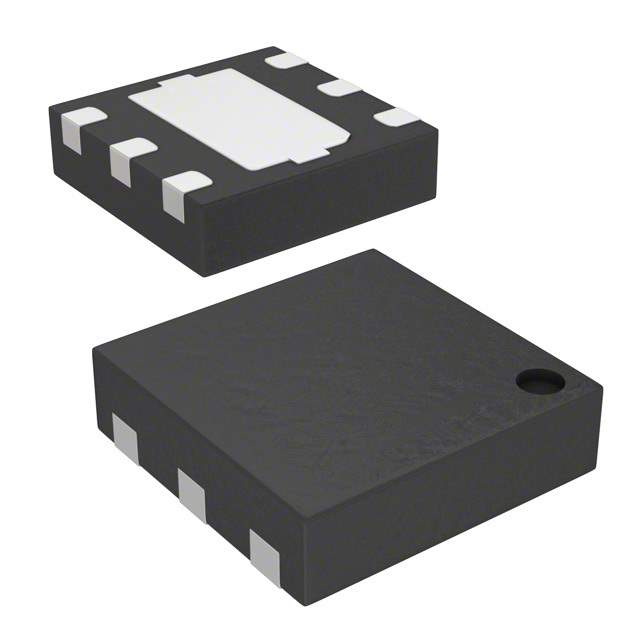

Case 6-XFDFN Exposed Pad
Supplier Device Package 6-MLPD (1.5x1.5)
Win Source Part Number SKY13348-374LF-324765
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name SKY13348
Introduction Date August 04, 2010
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SKY13348-374LF CAD Model

Description

The SKY13348-374LF-324765 is a high-performance absorptive SPDT switch manufactured by Skyworks Solutions Inc.

  • Frequency Range: 500MHz to 6GHz
  • Designed for: 802.16 WiMAX RF systems
  • Impedance: 50 Ohm
  • Isolation: 24dB @ 5.85GHz (typ)
  • Insertion Loss: 1dB @ 5.85GHz
  • IIP3: 57dBm (typ)
  • P1dB: 37dBm (typ) IP1dB
  • Package: 6-MLPD (1.5x1.5) package with an exposed pad
  • Temperature Range: -40°C to 85°C
  • Estimated EOL Date: 2027
