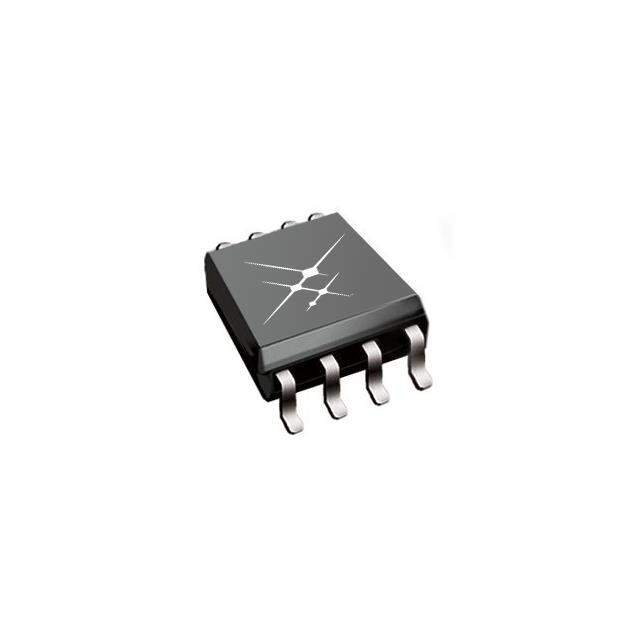

SI8261ACC-C-ISR

Name: SI8261ACC-C-ISR
Brand: Skyworks Solutions Inc.
SKU: 966948
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SI8261ACC-C-ISR
Manufacturer	Skyworks Solutions Inc.
Catalog	PMIC - Gate Drivers
Description	DGTL ISO 3.75KV GATE DRVR 8SOIC / 600mA Gate Driver Capacitive Coupling 3750Vrms 1 Channel 8-SOIC
Datasheet	SI8261ACC-C-ISR Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Isolators - Gate Drivers
Mfr	Skyworks Solutions Inc.
Series	Automotive, AEC-Q100
Package	Tape & Reel (TR)
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 50ns
Pulse Width Distortion (Max)	28ns
Rise / Fall Time (Typ)	5.5ns, 8.5ns
Current - Output High, Low	400mA, 600mA
Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	2.8V (Max)
Current - DC Forward (If) (Max)	30 mA
Voltage - Output Supply	13.5V ~ 30V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Approval Agency	CQC, CSA, UR, VDE
Base Product Number	SI8261
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	2,500
Win Source Part Number	966948-SI8261ACC-C-ISR
Ultra Librarian 3D Model	Ultra Librarian SI8261ACC-C-ISR CAD Model

Alternative Products

Description

The SI8261ACC-C-ISR is an automotive grade isolator from Skyworks Solutions Inc.

Technology: Capacitive Coupling
Voltage Isolation: 3750Vrms
Common Mode Transient Immunity: 35kV/µs
Maximum Forward Voltage: 2.8V
DC Forward Current: 30mA
Rise Time: 5.5ns
Fall Time: 8.5ns
Pulse Width Distortion: 28ns
Propagation Delay (tpLH): 60ns
Propagation Delay (tpHL): 50ns
Peak Output Current: 600mA
High Output Current: 400mA
Low Output Current: 600mA
Package: 8-SOIC
Temperature Range: -40°C to 125°C
