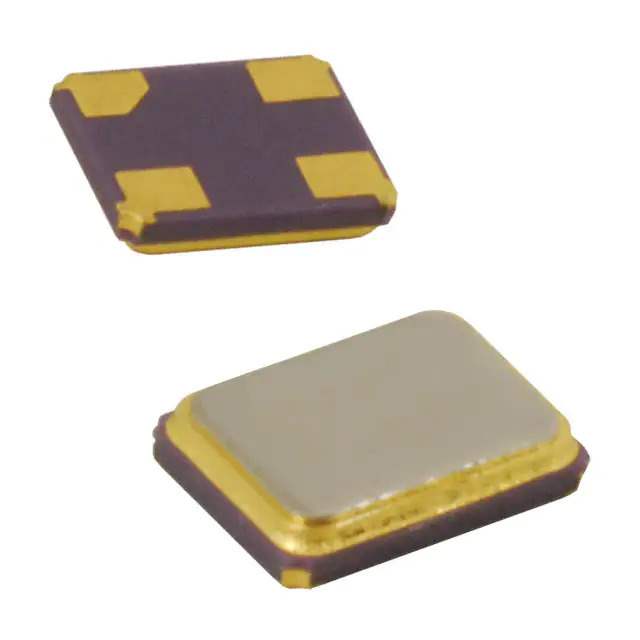

NX2520SA-16MHZ-STD-CSW-5 Real Image
Same model may have multiple batches, images only for reference.

NX2520SA-16MHZ-STD-CSW-5

Part No NX2520SA-16MHZ-STD-CSW-5
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 16.0000MHZ 8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX2520SA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±25ppm
Frequency Tolerance ±15ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 929534-NX2520SA-16MHZ-STD-CSW-5
Ultra Librarian 3D Model Ultra Librarian NX2520SA-16MHZ-STD-CSW-5 CAD Model

Description

The 786012 is a MHz crystal from the NX2520SA series by NDK.

  • Mounting Type: Surface Mount
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.022" (0.55mm)
  • Frequency: 16 MHz
  • Frequency Stability: ±25ppm
  • Frequency Tolerance: ±15ppm
  • Load Capacitance: 8pF
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 3,000 pcs
